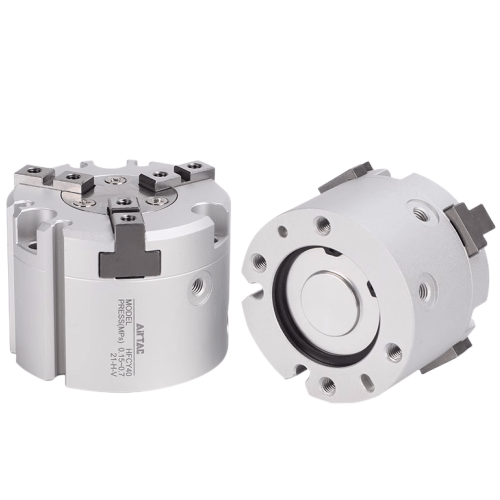

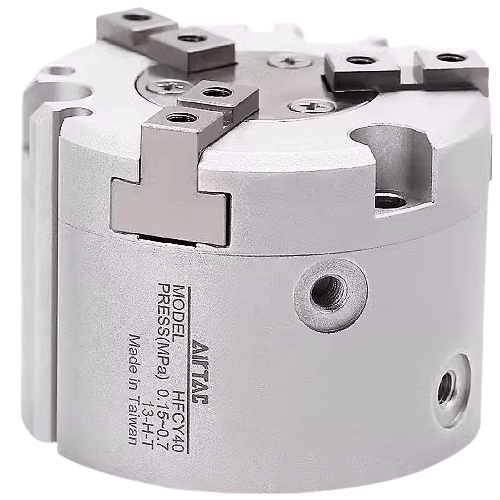

Airtac HFCY 3-Jaw Pneumatic Gripper HFCY16
2、Anti-collision cushion integrated at piston end effectively reduces metal-on-metal impact noise during jaw release;
3、Precision positioning pin holes on base enhance installation accuracy and maintain consistent repositioning during repeated disassembly;
4、Superior gripping repeatability (±0.01mm) optimized for automated equipment integration;
5、Multiple series configurations with diversified specifications available for handling varying workpiece geometries.
Category: Pneumatic Grippers | Brand: Airtac | Series: HFCY
AirTAC HFCY16 Three-Jaw Pneumatic Gripper Specifications
- Model: HFCY16
- Type: Parallel 3-jaw gripper (double-acting)
- Bore size: 16mm
- Operating pressure: 0.1–0.7 MPa (14.5–101.5 PSI)
- Stroke per jaw: 3mm (standard), customizable up to 8mm
- Gripping force: 28–196N (pressure-dependent)
- Repeat accuracy: ±0.02mm
- Air inlet: M5×0.8 (dual ports for push/pull action)
- Temperature range: -10℃ to 80℃
- Material: Aluminum alloy body, polyurethane seals
- Weight: 350g ±5% (without accessories)
- Dimensions: 120mm(L) × 65mm(W) × 45mm(H)
- Max gripping diameter: 50mm
- Response time: 0.1s @ 0.5MPa
- Lubrication: Pre-lubricated (maintenance-free for 5M cycles)
The HFCY16 features synchronized jaw movement through precision ground gears, ensuring equal force distribution across all three contact points. Its T-slot mounting system allows 360° orientation flexibility. The anodized surface resists industrial contaminants while maintaining <1μm surface roughness on guide rails.
- Robotic end-effectors for cylindrical parts handling
- PCB component insertion machines
- Medical device assembly (vials/syringes)
- Automotive fuel injector production lines
- Optical lens centering systems
Installation note:
For maximum stability, preload the mounting screws to 0.8–1.2Nm torque.
Use 5–40μm filtered air with 1–3 drops/m³ oil mist lubrication for optimal seal life.
| Property | Property Value |
|---|---|
| sku | HFCY16 |
| Operation Type | Double Acting |
| Gripper Optional Types | Three-Jaw |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
