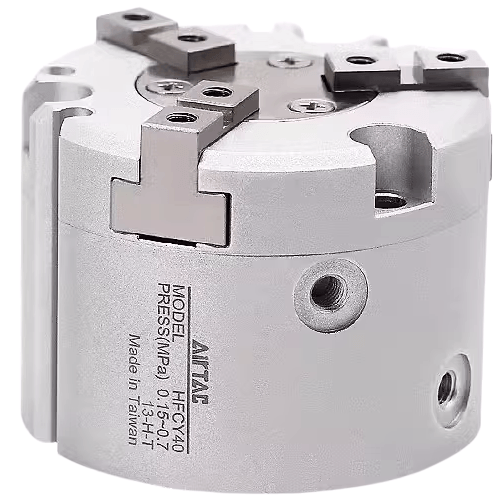

Airtac HFCY 3-Jaw Pneumatic Gripper HFCY32
2、Anti-collision cushion integrated at piston end effectively reduces metal-on-metal impact noise during jaw release;
3、Precision positioning pin holes on base enhance installation accuracy and maintain consistent repositioning during repeated disassembly;
4、Superior gripping repeatability (±0.01mm) optimized for automated equipment integration;
5、Multiple series configurations with diversified specifications available for handling varying workpiece geometries.
Category: Pneumatic Grippers | Brand: Airtac | Series: HFCY
AirTAC HFCY32 Three-Jaw Pneumatic Gripper Specifications
- Model: HFCY32
- Type: Parallel 3-jaw gripper (double-acting)
- Gripping force: 60-150N (adjustable via air pressure)
- Operating pressure: 0.1-0.7 MPa
- Stroke per jaw: 6mm standard (customizable up to 15mm)
- Actuation method: Pneumatic (requires 4.5-7 bar clean dry air)
- Port size: M5x0.8 (1/8" NPT optional)
- Body material: Anodized aluminum alloy
- Seal material: Nitrile rubber (NBR) / Polyurethane (PU) options
- Temperature range: -10℃ to 80℃ (NBR) / 0℃ to 60℃ (PU)
- Repeat accuracy: ±0.05mm
- Protection rating: IP54 (standard) / IP67 (optional wiper seal)
- Weight: 480g ±5%
- Dimensions: 118mm(L) × 52mm(W) × 42mm(H)
The HFCY32 features synchronized three-jaw centering motion with adjustable gripping force, ideal for handling cylindrical or irregular shaped objects. Its self-lubricating guide rods and wear-resistant bushings ensure smooth operation for >5 million cycles. Includes mounting slots for robotic arm integration and optional position sensors.
- Robotic part transfer in automotive assembly lines
- Precision component handling in SMT machinery
- Bottle capping systems in packaging
- Medical device manufacturing (cleanroom compatible version)
- Food processing automation (FDA-compliant seals available)
Installation note:
Lubricate with ISO VG32 turbine oil before first use. Avoid side load exceeding 30N.
For vertical mounting, use counterbalance valves. Allow 2mm clearance between jaws
and workpiece during calibration.
| Property | Property Value |
|---|---|
| sku | HFCY32 |
| Operation Type | Double Acting |
| Gripper Optional Types | Three-Jaw |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <32 mm> |
