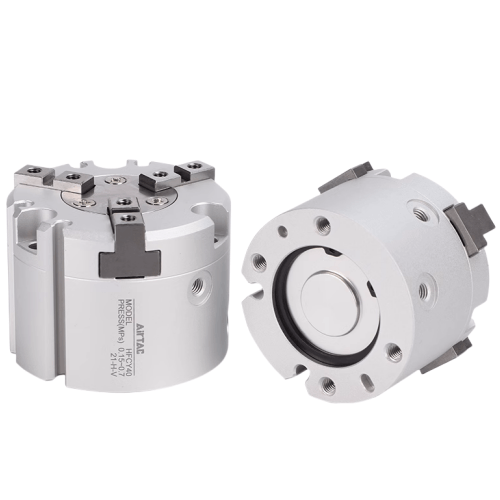

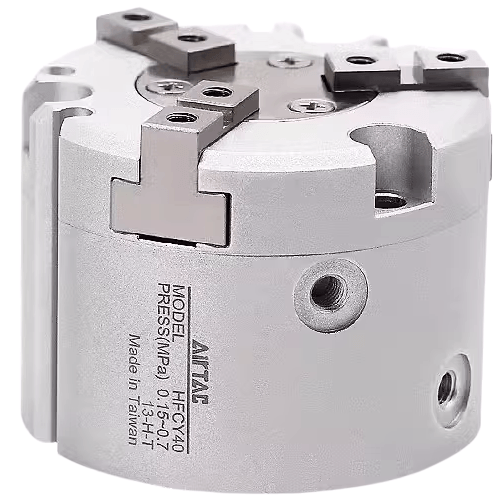

Airtac HFCY 3-Jaw Pneumatic Gripper HFCY40
2、Anti-collision cushion integrated at piston end effectively reduces metal-on-metal impact noise during jaw release;
3、Precision positioning pin holes on base enhance installation accuracy and maintain consistent repositioning during repeated disassembly;
4、Superior gripping repeatability (±0.01mm) optimized for automated equipment integration;
5、Multiple series configurations with diversified specifications available for handling varying workpiece geometries.
Category: Pneumatic Grippers | Brand: Airtac | Series: HFCY
AirTAC HFCY Series 3-Jaw Pneumatic Gripper HFCY40 Technical Details
- Model: HFCY40
- Type: 3-jaw parallel gripper (double-acting)
- Bore size: Ø40mm
- Operating pressure: 0.2–0.7 MPa
- Stroke per jaw: 0–6mm (adjustable)
- Max gripping force: 90N @0.5MPa
- Operating temperature: -10℃ to 80℃
- Port size: M5x0.8 (dual ports for open/close)
- Body material: Anodized aluminum alloy (JA12)
- Jaw material: Hardened stainless steel (HRC45±2)
- Seal type: High-wear resistance polyurethane (PU)
- Repeat accuracy: ±0.02mm
- Max operating speed: 300mm/s
- Weight: 1.2kg ±3%
- Dimensions: 118mm(L) × 72mm(W) × 55mm(H)
- Protection class: IP54 (standard), IP67 optional
- Lubrication: Pre-lubricated (maintenance-free for 5,000km travel)
High-precision triple-jaw gripper with synchronized parallel movement, engineered for secure handling of cylindrical and irregular shaped objects. Features zero-backlash gear mechanism and shock-absorbing end caps. Requires clean compressed air with 5-40μm filtration and ISO VG32 grade lubricant (optional).
- Robotic assembly of bearings/sprockets
- CNC machine tool loading-unloading systems
- Precision glass tube handling in medical device manufacturing
- Bottle cap positioning in food packaging lines
- Electronics component insertion machines
Mounting advice:
For vertical installations, use anti-vibration brackets (AVB-40 accessory recommended).
Maintain 0.5-1mm clearance between jaws and workpiece during initial calibration.
- Cycle life: 10 million operations @0.5MPa
- Max lateral load capacity: 150N (static), 80N (dynamic)
- Air consumption: 32cm³/stroke @0.5MPa
- Shock resistance: 15G acceleration (10ms duration)
| Property | Property Value |
|---|---|
| sku | HFCY40 |
| Operation Type | Double Acting |
| Gripper Optional Types | Three-Jaw |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <40mm> |
