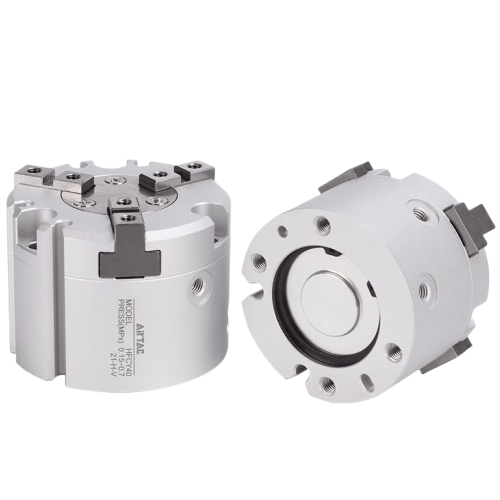

Airtac HFCY 3-Jaw Pneumatic Gripper HFCY50
2、Anti-collision cushion integrated at piston end effectively reduces metal-on-metal impact noise during jaw release;
3、Precision positioning pin holes on base enhance installation accuracy and maintain consistent repositioning during repeated disassembly;
4、Superior gripping repeatability (±0.01mm) optimized for automated equipment integration;
5、Multiple series configurations with diversified specifications available for handling varying workpiece geometries.
Category: Pneumatic Grippers | Brand: Airtac | Series: HFCY
AirTAC HFCY50 Three-Jaw Pneumatic Gripper Specifications
- Model: HFCY50
- Type: Parallel three-jaw gripper (double-acting)
- Bore size: Φ50mm
- Operating pressure: 0.2–0.7 MPa
- Stroke per jaw: 8mm (standard), customizable up to 15mm
- Port size: 1/8" NPT (G1/8 optional)
- Body material: Anodized aluminum alloy
- Jaw material: Stainless steel 304
- Seal material: HNBR rubber (oil-resistant)
- Temperature range: -10℃ to 80℃
- Repeat accuracy: ±0.05mm
- Gripping force: 120–420N (adjustable via pressure regulation)
- Weight: 0.9kg (excluding accessories)
- Dimensions: 150mm(L) × 80mm(W) × 85mm(H)
- Response time: 0.15s (at 0.5MPa)
- Mounting options: 4×M5 threaded holes on base
High-precision three-jaw gripper featuring synchronized radial movement with self-centering capability. Equipped with dual guide rods for enhanced stability and anti-rotation design. Integrated air ports allow direct hose connection without external piping. Optional magnetic sensor slots (M5/M8) for position feedback.
- Robotic assembly of cylindrical components (batteries, bearings)
- Bottle cap handling in pharmaceutical packaging lines
- Precision positioning of optical lenses
- Automotive part transfer systems
- Food-grade gripping with optional PTFE coating
Installation note:
Maintain concentric alignment during mounting. Use locknuts (included) for jaw adjustment.
Lubricate guide rods monthly with ISO VG32 hydraulic oil. Maximum side load: 30N.
| Property | Property Value |
|---|---|
| sku | HFCY50 |
| Operation Type | Double Acting |
| Gripper Optional Types | Three-Jaw |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <50mm> |
