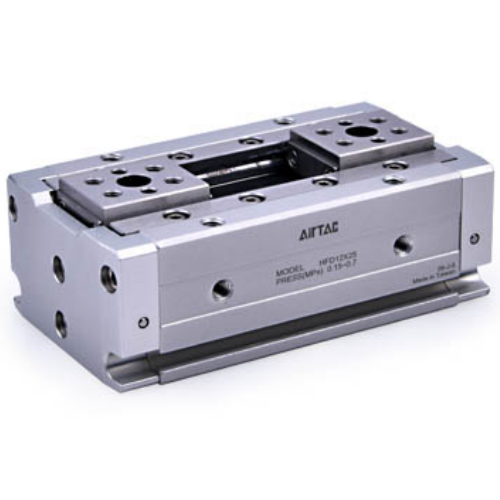

Airtac HFD Slim Type Pneumatic Gripper HFD12X25
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD Slim Pneumatic Gripper HFD12X25 Technical Specifications
- Model: HFD12X25
- Type: Dual-acting parallel gripper
- Bore size: Ø12mm
- Stroke per jaw: 25mm (total opening 50mm)
- Operating pressure: 0.1-0.7 MPa (14.5-101.5 PSI)
- Max gripping force: 32N at 0.5MPa
- Repeat accuracy: ±0.05mm
- Port size: M5x0.8 (standard) with NPT1/8 adapter option
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant polyurethane
- Temperature range: -10℃ to 80℃ (14℉ to 176℉)
- Weight: 250g ±5% (excluding accessories)
- Dimensions: 80mm(L) × 40mm(W) × 25mm(H)
- Mounting pattern: 30mm inter-hole spacing with M4 threaded holes
- Air consumption: 12.5cm³ per stroke
- Response time: 0.1s (at 0.5MPa)
- Protection rating: IP54 (dust and water spray resistant)
Ultra-compact pneumatic parallel gripper featuring low-profile design (25mm height) for confined spaces. Precision ground guide rods ensure smooth operation with minimal stick-slip effect. Integrated T-slot mounting system allows tooling plate integration. Optional magnetic sensor slots for position feedback.
- PCB component insertion machines
- Micro-part handling in watch manufacturing
- Cartesian robot end effectors
- Pharmaceutical blister packaging
- Semiconductor wafer handling
- Desktop automation systems
Maintenance tip: Lubricate guide rods monthly with ISO VG32 turbine oil.
Avoid side-loading beyond 15N to prevent guide rod deflection.
Use clean dry air with 5-40μm filtration.
- Finger types: Standard jaw pads (rubber/urethane), vacuum cup adapters
- Sensor ready: Supports M5x0.5 threaded inductive sensors
- Mounting: Direct integration with AG series actuators
| Property | Property Value |
|---|---|
| sku | HFD12X25 |
| Stroke | <25 mm> |
