Airtac HFD Slim Type Pneumatic Gripper HFD16X15
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD

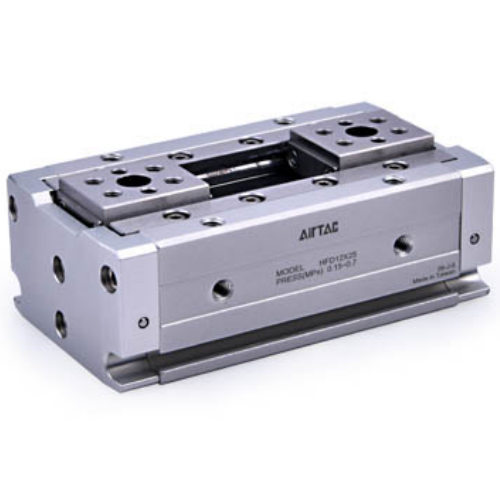

AirTAC HFD16X15 Slim Pneumatic Gripper Technical Details
- Model: HFD16X15
- Type: Parallel twin-arm gripper (double-acting)
- Gripping Force: 16N (single finger) / 32N (dual fingers)
- Stroke per finger: 15mm
- Operating pressure: 0.1-0.7 MPa
- Port size: M5x0.8 (standard) with NPT1/8 adapter option
- Repeat accuracy: ±0.02mm
- Body material: Anodized aluminum alloy (A6063)
- Seal material: Polyurethane (PU) with wear-resistant coating
- Temperature range: -10℃ to 80℃ (extended to 120℃ with optional seals)
- Weight: 285g ±5g
- Dimensions: 76mm(L) × 40mm(W) × 34mm(H)
- Mounting pattern: 30mm × 30mm square with M4 threaded holes
- Max operating speed: 500mm/s
- Protection rating: IP54 (IP67 with optional boot)
Ultra-compact parallel gripper featuring low-profile design (34mm height) for space-constrained automation applications. Precision ground guide rails ensure smooth linear motion with minimal stick-slip effect. Integrated T-slot mounting enables flexible tooling attachment. Compatible with vacuum pads or custom jaws (max 0.5kg payload). Requires 5μm filtered dry air with ISO VG32 lubricant.
- PCB handling in SMT assembly lines
- Micro-component sorting in watch manufacturing
- Syringe grasping in medical device automation
- Compact robot end-effectors (SCARA/Delta robots)
- Optics lens positioning systems
Installation note:
For vertical mounting applications, install air exhaust mufflers to prevent particle ingress.
Lubricate guide rails every 500,000 cycles using silicone-free grease. Maintain 0.3-0.5mm clearance
between jaws and workpiece during initial calibration.
| Property | Property Value |
|---|---|
| sku | HFD16X15 |
| Stroke | <15mm> |
