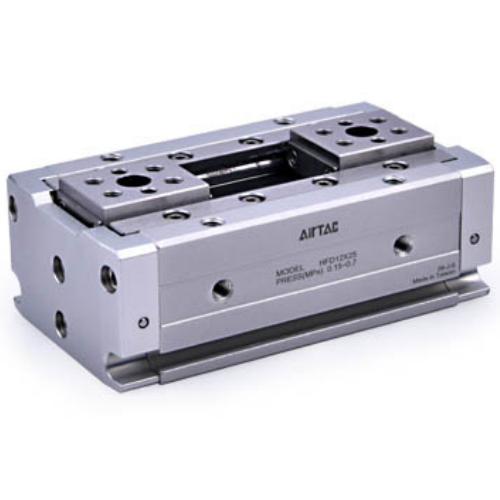

Airtac HFD Slim Type Pneumatic Gripper HFD16X30
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD Slim Pneumatic Gripper HFD16X30 Technical Details
- Model: HFD16X30
- Structure: Compact wedge-type parallel gripper
- Action type: Double-acting (air pressure required for both open/close)
- Bore size: 16mm
- Stroke per jaw: 30mm (total grip range 60mm)
- Operating pressure: 0.2–0.7 MPa
- Port size: M5x0.8 (dual ports for open/close control)
- Repeatability: ±0.05mm
- Max gripping force: 38N @ 0.5MPa
- Temperature range: -10℃ to 80℃ (non-freezing)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR
- Weight: 285g ±5g
- Dimensions: 76mm(L) × 42mm(W) × 34mm(H)
- Mounting: 4x M4 threaded holes (depth 6mm)
- Air consumption: 52cm³/stroke
- Response time: 0.1s @ 0.5MPa
- Protection rating: IP54 (dust protected, splash resistant)
Ultra-slim profile gripper (34mm height) engineered for precision handling in confined spaces. Features zero-backlash wedge mechanism with self-compensation for wear, ensuring consistent grip force over 5 million cycles. Optimized flow channels enable rapid response, while hardened guide rails prevent particulate generation. Requires 5μm filtered lubricated air (ISO 8573-1:2010 Class 4.4.3).
- PCB component insertion machines
- Micro-motor shaft assembly lines
- Pharmaceutical blister packaging
- SCARA robot end-effectors
- Optical lens handling systems
- Watch movement assembly stations
Mounting recommendation:
Maintain parallelism within 0.2mm between gripper base and workpiece plane.
Use flexible tubing to prevent lateral force transmission. Lubricate monthly with ISO VG32 turbine oil.
| Property | Property Value |
|---|---|
| sku | HFD16X30 |
| Stroke | 30mm |
