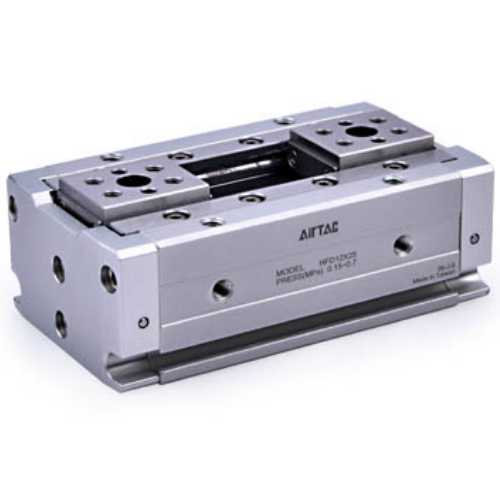

Airtac HFD Slim Type Pneumatic Gripper HFD20X20
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD20X20 Slim Pneumatic Gripper Technical Details
- Model: HFD20X20
- Type: Parallel opening/closing, double-acting
- Gripping force: 40N (at 0.5MPa)
- Stroke per jaw: 20mm
- Operating pressure: 0.1–0.7 MPa
- Repeat accuracy: ±0.05mm
- Temperature range: -10℃ to 70℃
- Seal material: NBR (Nitrile rubber)
- Port size: M5 (1/8" NPT optional)
- Weight: 180g ±5g
- Dimensions: 80mm(L) × 40mm(W) × 20mm(H)
- Surface treatment: Hard anodized aluminum body
- Mounting pattern: 32mm × 32mm (ISO 9409-1 compatible)
- Max operating speed: 500mm/s
- Shock resistance: 15G (11ms duration)
Ultra-flat pneumatic gripper (thinner than standard models by 35%) designed for precision handling in confined spaces. Features dual piston chambers for balanced force distribution and integrated T-slot mounting for tooling flexibility. The hardened guide rails ensure 500km+ service life under full load conditions.
- PCB component insertion machines
- Micro-motor assembly stations
- Pharmaceutical blister packaging lines
- SCARA robot end-effectors
- Optical lens handling systems
- Watch manufacturing automation
Installation protocol:
Use M3×0.5 mounting screws with 0.6-0.8Nm torque. Maintain 0.5mm clearance between jaws and workpiece during initial calibration. Requires 5μm filtered air with ISO 8573-1:2010 Class 3.4.2 air quality.
- Zero backlash design with preloaded linear guides
- ±0.01mm jaw parallelism tolerance
- Integrated air-saving circuit (30% consumption reduction)
- Compatible with vacuum detection sensors (optional)
| Property | Property Value |
|---|---|
| sku | HFD20X20 |
| Stroke | <20mm> |
