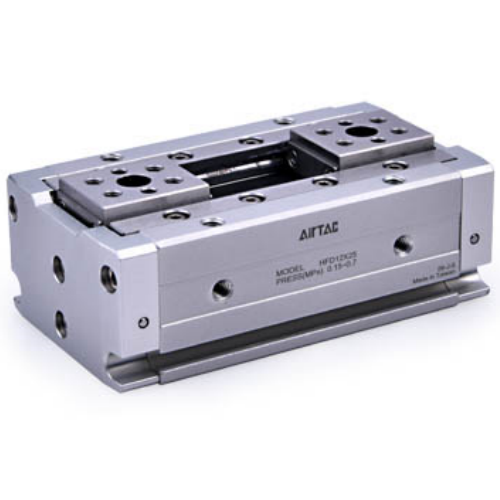

Airtac HFD Slim Type Pneumatic Gripper HFD20X40
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD20X40 Slim Pneumatic Gripper Specifications
- Model: HFD20X40
- Type: Parallel jaw slim gripper (Double-acting)
- Bore size: Ø20mm
- Stroke: 40mm
- Operating pressure: 0.1–0.7 MPa
- Max gripping force: 62N @0.5MPa
- Repeat accuracy: ±0.05mm
- Port size: M5×0.8 (Dual ports)
- Piston material: Hard anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃
- Weight: 420g ±5%
- Dimensions: 118mm(L) × 34mm(W) × 28mm(H)
- Response time: 50ms @0.5MPa
- Protection rating: IP54
- Lubrication: Pre-lubricated (Maintenance-free)
Ultra-flat pneumatic parallel gripper with optimized center-of-gravity design for high-speed automation. Features precision ground guide rods and wear-resistant bushings for smooth operation exceeding 10 million cycles. The asymmetric jaw mounting surface allows flexible tooling customization.
- PCB handling in SMT production lines
- Precision component assembly in watchmaking
- Pharmaceutical blister packaging systems
- Miniature bearing transfer in robotics
- Optical lens positioning devices
Installation note:
Maintain 0.5-1mm clearance between jaws and workpiece during initial setup.
Use clean dry air with 5μm filtration. For vertical mounting applications,
install air exhaust silencers to prevent particle ingress.
| Property | Property Value |
|---|---|
| sku | HFD20X40 |
| Stroke | <40mm> |
