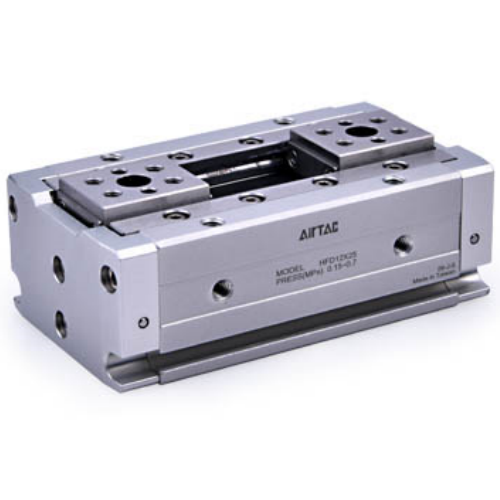

Airtac HFD Slim Type Pneumatic Gripper HFD20X80
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD20X80 Slim Pneumatic Gripper Specifications
- Model: HFD20X80
- Type: Parallel jaw slim gripper (double-acting)
- Bore size: Ø20mm
- Stroke per jaw: 80mm (total opening 160mm)
- Operating pressure: 0.1–0.7 MPa
- Max gripping force: 78N at 0.5MPa
- Repeat accuracy: ±0.1mm
- Port size: M5×0.8 (dual ports for push/pull action)
- Weight: 850g ±3%
- Dimensions: 150mm(L) × 40mm(W) × 30mm(H)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (-10℃ to 100℃)
- Piston material: Hardened stainless steel
- Mounting: 4×M4 threaded holes (bottom/side mounting)
- Shock resistance: 15G acceleration (3ms duration)
- Protection rating: IP54 (standard), IP67 optional
Ultra-flat pneumatic gripper with extended stroke for precision handling of large or irregularly shaped objects. Features dual-channel air control for synchronized jaw movement and optional position sensing. The hardened guide rods ensure minimal lateral deflection during high-speed operations (recommended cycle rate: ≤2Hz). Compatible with ISO 9409-1 mounting interfaces.
- PCB panel handling in electronics assembly
- Battery cell stacking in energy storage systems
- Cosmetic component transfer in automated packaging lines
- Medical device positioning during laser marking
- Glass substrate manipulation in display manufacturing
Operation tip:
For fragile objects, use 0.15-0.3MPa pressure with shock absorbers.
Lubricate guide rods every 500,000 cycles using ISO VG32 turbine oil.
Critical note:
Avoid lateral impact forces exceeding 50N. When handling conductive materials,
ground the gripper body to prevent ESD damage.
| Property | Property Value |
|---|---|
| sku | HFD20X80 |
| Stroke | 80 mm |
