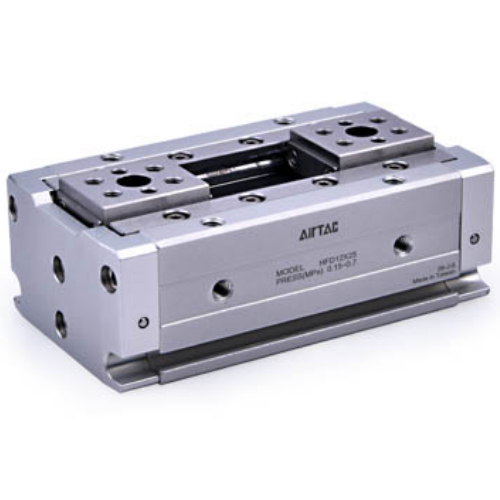

Airtac HFD Slim Type Pneumatic Gripper HFD25X40
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD25X40 Slim Pneumatic Gripper Specifications
- Model: HFD25X40
- Type: Double-acting parallel gripper
- Bore size: 25mm
- Stroke per jaw: 40mm (total opening 80mm)
- Operating pressure: 0.1-0.7 MPa
- Max gripping force: 210N @0.5MPa
- Repeat accuracy: ±0.05mm
- Port size: M5×0.8 (standard), G1/8 optional
- Weight: 0.68kg (bare gripper), 0.92kg with accessories
- Dimensions: 146mm(L) × 62mm(W) × 34mm(H)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR
- Temperature range: -10℃ to 80℃ (extended to 120℃ with HNBR seals)
- Air consumption: 230cm³/stroke @0.5MPa
- Response time: 50ms @0.5MPa
- Protection rating: IP54 (dust/water splashes)
Ultra-flat profile gripper (34mm height) designed for space-constrained automation systems. Features precision ground guide rods and wear-resistant bushings for smooth operation. Integrated T-slot mounting pattern allows multi-position installation. Compatible with vacuum cups and custom tooling adapters.
- PCB handling in electronics assembly lines
- Medical device component sorting
- Cartesian robot end effectors
- Compact packaging machinery
- 3C product testing equipment
- Precision parts transfer in cleanrooms
Installation tip:
Use alignment jigs during mounting to ensure parallel jaw movement.
Lubricate guide rods monthly with ISO VG32 turbine oil.
Maximum side load capacity: 150N (perpendicular to jaw motion axis).
