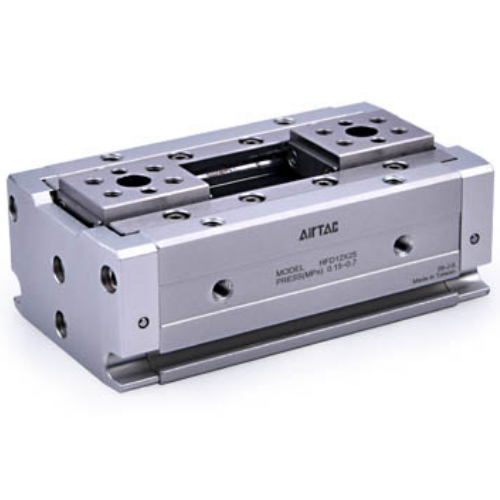

Airtac HFD Slim Type Pneumatic Gripper HFD25X80
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD25X80 Slim Pneumatic Gripper Specifications
- Model: HFD25X80
- Type: Parallel jaw slim gripper (double-acting)
- Bore size: Ø25mm
- Stroke per jaw: 8mm (total 16mm opening)
- Operating pressure: 0.1–0.7 MPa
- Max gripping force: 150N at 0.5MPa
- Repeat accuracy: ±0.05mm
- Port size: M5×0.8 (dual ports for push/pull action)
- Piston material: Hard anodized aluminum alloy
- Seal type: NBR wear-resistant seals
- Ambient temperature: -10℃ to 70℃
- Weight: 520g ±5%
- Dimensions: 80mm(L) × 25mm(W) × 25mm(H)
- Mounting pattern: 4×M4 threaded holes (6mm depth)
- Response time: 0.1s (at 0.5MPa)
- Protection rating: IP54
Ultra-flat pneumatic gripper with precision ground guide rods, optimized for high-speed pick-and-place operations in confined spaces. Features dual-port quick response design and anti-rotation mechanism for stable gripping. Compatible with vacuum cups or custom jaws (M4 mounting threads provided). Requires filtered lubricated air (ISO 8573-1 class 3.4.2).
- PCB handling in SMT assembly lines
- Medical device component sorting
- Battery cell transfer in EV manufacturing
- Cosmetic product packaging systems
- Delta robot end-effector integration
Operation tip:
For fragile objects, reduce operating pressure to 0.15-0.3MPa and
install shock absorbers. Lubricate guide rods monthly with ISO VG32
pneumatic oil. Avoid side-load exceeding 20N during gripping.
| Property | Property Value |
|---|---|
| sku | HFD25X80 |
| Stroke | 80 mm |
