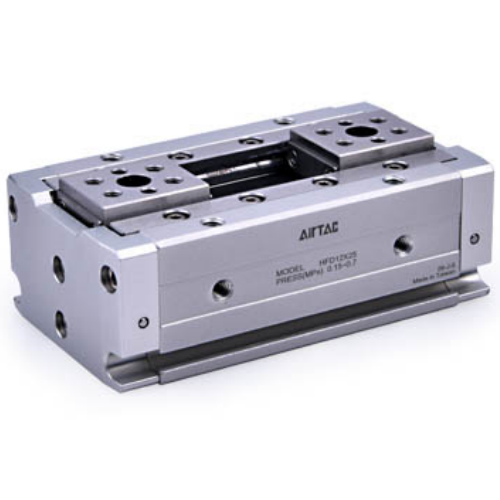

Airtac HFD Slim Type Pneumatic Gripper HFD8X30
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD Series Slim Pneumatic Gripper HFD8X30 Technical Details
- Model: HFD8X30
- Type: Dual-acting parallel gripper
- Gripping force: 12N @0.5MPa / 14N @0.6MPa
- Stroke per jaw: 3mm (total 6mm opening)
- Operating pressure: 0.1-0.7 MPa
- Actuation: Pneumatic (requires 4mm pneumatic ports)
- Port size: M5x0.8 internal thread
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃
- Repeat accuracy: ±0.05mm
- Protection rating: IP40
- Weight: 0.45kg (bare gripper)
- Dimensions: 80mm(L) × 30mm(W) × 30mm(H)
Ultra-slim profile gripper with precision ground guide rails, optimized for high-speed pick-and-place operations in confined spaces. Features wear-resistant PTFE lubrication-free bushings and anti-vibration design for stable gripping of delicate components. Requires dry compressed air (ISO 8573-1:2010 Class 3.4.3) with optional oil mist lubrication.
- PCB handling in electronics assembly lines
- Micro component sorting in watch manufacturing
- Vial cap positioning in pharmaceutical packaging
- Optical lens manipulation systems
- 3C product testing equipment
Installation tip:
Maintain coaxial alignment within 0.2mm tolerance during mounting.
For high-cycle applications (>50cpm), use regulated air supply with
40μm filtration and maintain 0.1-0.15MPa
below max pressure to extend seal life.
| Property | Property Value |
|---|---|
| sku | HFD8X30 |
| Stroke | 30mm |
