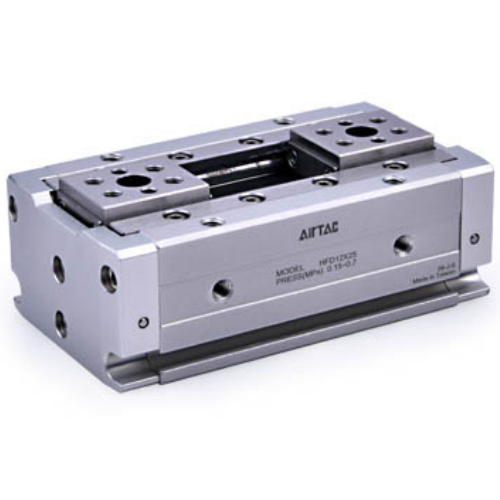

Airtac HFD Slim Type Pneumatic Gripper HFD8X8
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD8X8 Slim Pneumatic Gripper Specifications
- Model: HFD8X8
- Type: Parallel twin-piston sliding mechanism
- Gripping force: 5-15N (adjustable via air pressure)
- Operating pressure: 0.1-0.7 MPa
- Stroke per jaw: 8mm
- Max jaw width: 16mm (8mm×2)
- Port size: M5x0.8 (standard) / NPT1/8 (optional)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃
- Weight: 180g ±5g
- Dimensions: 80mm(L) × 34mm(W) × 20mm(H)
- Repeat accuracy: ±0.05mm
- Max operating speed: 100mm/s
- Air consumption: 18cm³/stroke (single acting)
Ultra-flat pneumatic gripper with symmetrical force distribution, designed for precision micro-handling in confined spaces. Features zero-backlash guide mechanism and anti-rotation pins for stable gripping. Optional silicone jaw pads available for fragile objects. Compatible with ISO 6432 mounting standards.
- PCB component insertion machines
- Watch movement assembly automation
- Pharmaceutical blister packaging
- Micro-connector handling in electronics
- Laboratory sample sorting systems
Installation note:
Maintain 0.5-1mm clearance between jaws and workpiece during initial setup.
Use 5μm filtered dry air with 1-3 drops of ISO VG32 oil per m³ for lubrication.
Avoid side-load exceeding 3N during operation.
| Property | Property Value |
|---|---|
| sku | HFD8X8 |
| Stroke | <8mm> |
