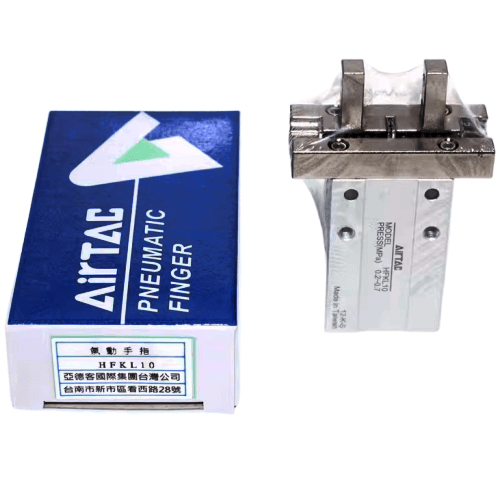

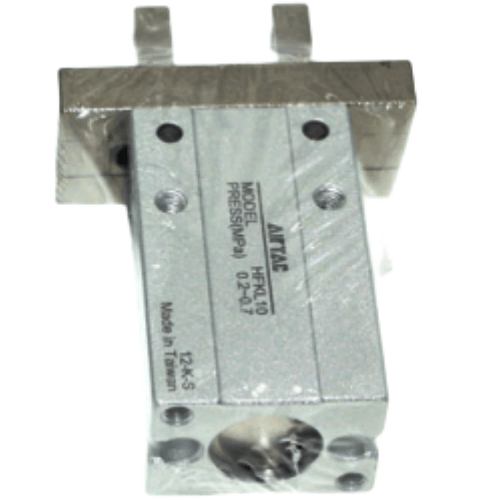

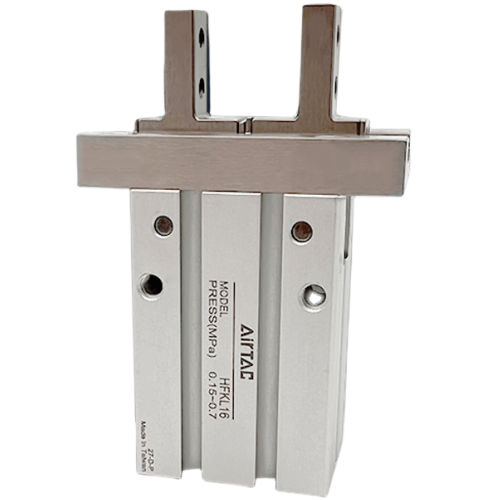

Airtac HFKL Guided Parallel Type Pneumatic Gripper HFKL10F
$153.50
Regular price
$161.00
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFKL10F
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Pneumatic grippers (also known as pneumatic clamping jaws or pneumatic fingers) are compressed air-powered actuation devices designed for precise workpiece gripping and handling applications. Originally developed in Japan, these components have become essential in modern industrial automation systems.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
Operation tip:
For delicate object handling, maintain 0.3-0.4MPa pressure and use silicone jaw covers.
Lubricate guide rails every 500,000 cycles using ISO VG32 hydraulic oil.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
AirTAC HFKL10F Guided Parallel Gripper Specifications
- Model: HFKL10F
- Type: Guided parallel gripper (double-acting)
- Gripping force: 18-34N adjustable (at 0.5MPa)
- Stroke per finger: 5mm
- Operating pressure: 0.1-0.7 MPa
- Port size: M5 (1/8")
- Guide mechanism: Dual linear ball bearing rails
- Repeat accuracy: ±0.02mm
- Body material: Aluminum alloy (anodized)
- Rail material: Stainless steel
- Seal material: NBR
- Temperature range: -10℃ to 80℃
- Protection rating: IP40
- Weight: 180g ±5g
- Dimensions: 60mm(L) × 40mm(W) × 25mm(H)
- Mounting pattern: 25mm spaced M3 threaded holes
Precision parallel gripper with integrated linear guides, designed for high-accuracy part positioning and minimal deflection during operation. Features dual air ports for bidirectional control and wear-compensating jaw surfaces. The hardened stainless steel rails provide 500km+ service life under standard loads.
Typical Applications:
- PCB component insertion machines
- Micro-motor shaft assembly systems
- Pharmaceutical blister packaging lines
- Watch movement handling robots
- Optical lens positioning devices
Operation tip:
For delicate object handling, maintain 0.3-0.4MPa pressure and use silicone jaw covers.
Lubricate guide rails every 500,000 cycles using ISO VG32 hydraulic oil.
Configuration Options:
- Custom jaw lengths available (5-30mm)
- Optional magnetic sensor slots for position feedback
- High-temp version (up to 120℃) with FKM seals
| Property | Property Value |
|---|---|
| sku | HFKL10F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
| Stroke | <8mm> |
