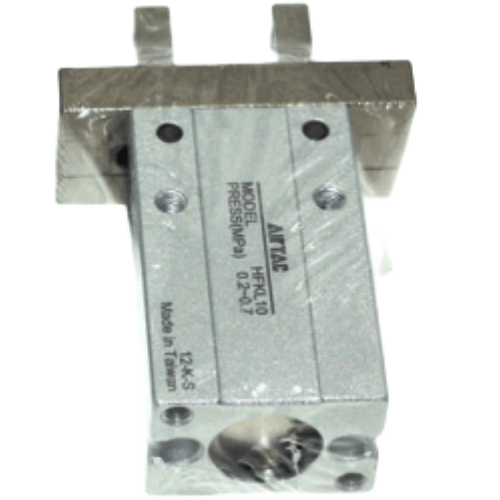

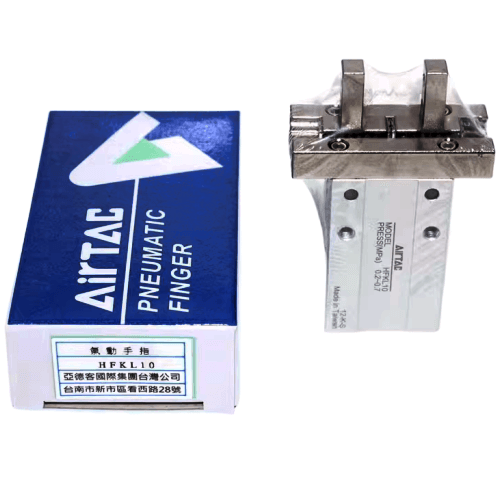

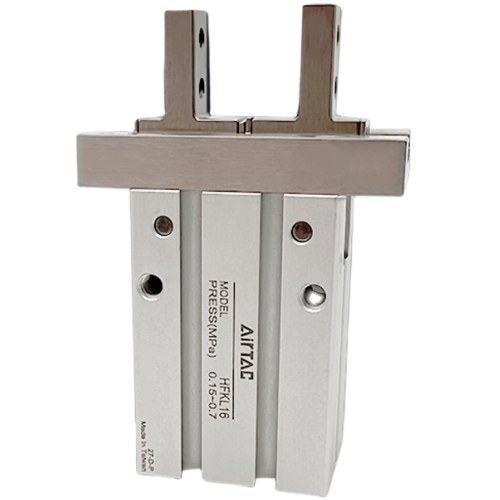

Airtac HFKL Guided Parallel Type Pneumatic Gripper HFKL16F
$160.48
Regular price
$167.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFKL16F
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Pneumatic grippers (also known as pneumatic clamping jaws or pneumatic fingers) are compressed air-powered actuation devices designed for precise workpiece gripping and handling applications. Originally developed in Japan, these components have become essential in modern industrial automation systems.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
Installation tip:
Maintain coaxial alignment within 0.2mm during mounting. Use flexible tubing
with 6mm ID for optimal response time. For vertical installations,
add 20% extra gripping force margin.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
AirTAC HFKL16F Guided Parallel Pneumatic Gripper Specifications
- Model: HFKL16F
- Type: Guided parallel gripper (double rail)
- Action type: Double-acting
- Gripping force: 22N at 0.5MPa / 35N at 0.7MPa
- Stroke per jaw: 8mm (total 16mm opening)
- Operating pressure: 0.1–0.7 MPa
- Guide mechanism: Dual linear ball bearings
- Port size: M5x0.8 (standard), NPT1/8 optional
- Repeat accuracy: ±0.02mm
- Body material: Anodized aluminum alloy
- Jaw material: Stainless steel (SUS304)
- Seal material: NBR (nitrile rubber)
- Temperature range: -10℃ to 80℃
- Weight: 270g ±5g
- Dimensions: 79mm(L) × 35mm(W) × 35mm(H)
- Mounting pattern: 25mm spacing, M4 threaded holes
- Protection rating: IP54 (standard), IP67 optional
- Lubrication: Pre-lubricated (Grease-free operation)
Precision parallel gripper with dual linear guides for ultra-stable part handling. Features anti-corrosion treatment and wear-resistant bearings, optimized for high-cycle automation tasks. Requires 5μm filtered air supply (ISO 8573-1:2010 class 5). Includes built-in T-slot for custom jaw tooling.
Typical Applications:
- PCB component insertion machines
- Medical device assembly lines
- Precision gearbox part handling
- Automotive fuel injector production
- Silicon wafer transfer systems
- Pharmaceutical blister packaging
Installation tip:
Maintain coaxial alignment within 0.2mm during mounting. Use flexible tubing
with 6mm ID for optimal response time. For vertical installations,
add 20% extra gripping force margin.
| Property | Property Value |
|---|---|
| sku | HFKL16F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
