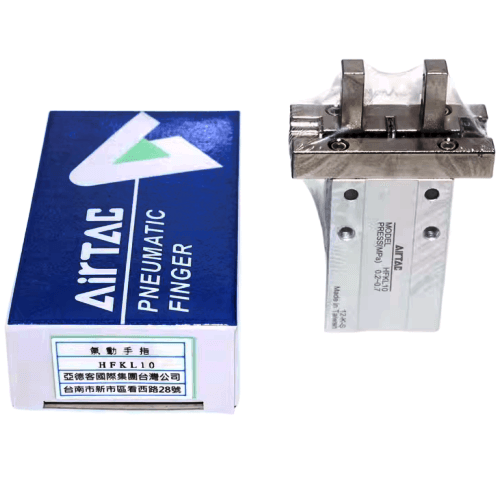

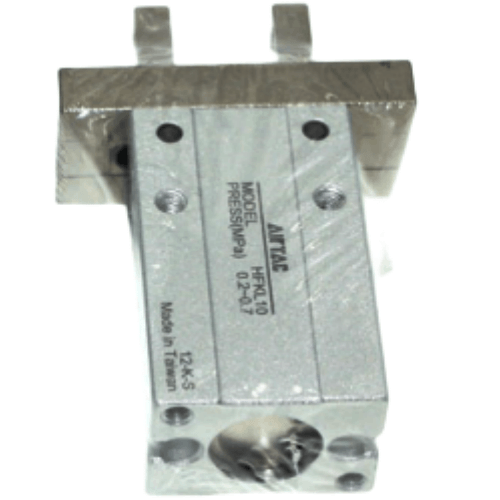

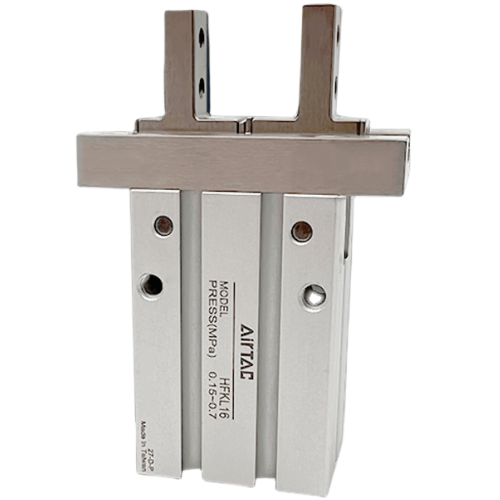

Airtac HFKL Guided Parallel Type Pneumatic Gripper HFKL16N
$160.48
Regular price
$167.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFKL16N
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Pneumatic grippers (also known as pneumatic clamping jaws or pneumatic fingers) are compressed air-powered actuation devices designed for precise workpiece gripping and handling applications. Originally developed in Japan, these components have become essential in modern industrial automation systems.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
Operational note:
Apply silicone-free lubricant (ISO VG10 grade) to guide rails every 50,000 cycles.
Maintain 0.3-0.5MPa air pressure for optimal grip force balance. Avoid lateral overload >5N.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
AirTAC HFKL16N Guided Parallel Pneumatic Gripper Specifications
- Model: HFKL16N
- Type: Double-acting guided parallel gripper
- Gripping force: 16N (adjustable via pressure regulation)
- Stroke per jaw: 0-5mm (standard), customizable up to 15mm
- Operating pressure: 0.1-0.7 MPa
- Port size: M5x0.8 (standard), optional NPT1/8
- Repeat accuracy: ±0.02mm
- Guide mechanism: Dual linear ball bearing slides
- Body material: Anodized aluminum alloy (A6063)
- Seal material: Heat-resistant NBR
- Temperature range: -10℃ to 80℃
- Protection rating: IP54 (dust/water resistant)
- Weight: 0.45kg ±3%
- Dimensions: 72mm(L) × 34mm(W) × 25mm(H)
- Mounting pattern: 25mm spacing M3 threaded holes
Precision parallel gripper with integrated linear guides, designed for high-accuracy part handling in automated assembly lines. Features zero-backlash motion through dual ball bearing slides and symmetrical force distribution. Compatible with vacuum suction cup adapters and custom jaw tooling.
Typical Applications:
- PCB component placement machines
- Watch movement assembly automation
- Medical device micro-part handling
- Robotic arm end-effector integration
- Optical lens sorting systems
Operational note:
Apply silicone-free lubricant (ISO VG10 grade) to guide rails every 50,000 cycles.
Maintain 0.3-0.5MPa air pressure for optimal grip force balance. Avoid lateral overload >5N.
| Property | Property Value |
|---|---|
| sku | HFKL16N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
