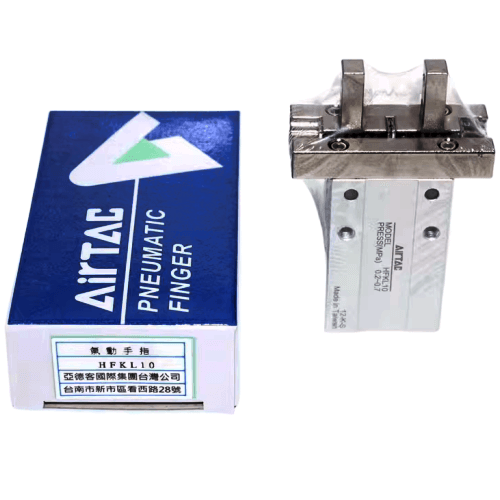

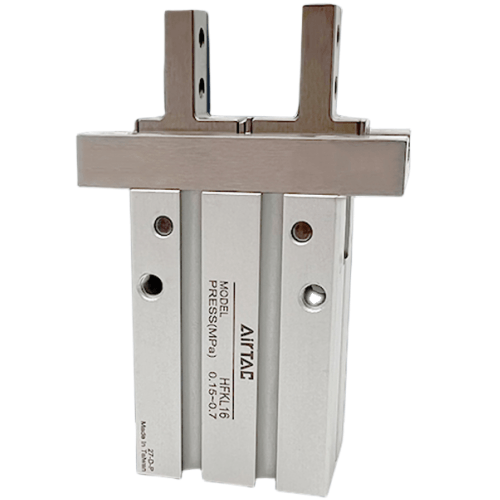

Airtac HFKL Guided Parallel Type Pneumatic Gripper HFKL20F
$176.77
Regular price
$184.27
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFKL20F
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Pneumatic grippers (also known as pneumatic clamping jaws or pneumatic fingers) are compressed air-powered actuation devices designed for precise workpiece gripping and handling applications. Originally developed in Japan, these components have become essential in modern industrial automation systems.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
Installation note:
Apply lithium soap-based grease to guide rails during maintenance.
Use alignment jig (PN: AGJ-HFKL20) for multi-gripper configurations
to ensure parallel accuracy within 0.05mm across units.
The HFKL series from AIRTAC represents a parallel-type guided pneumatic gripper engineered for high-precision operations. Available in standardized bore sizes (16mm, 20mm, 25mm, 32mm, and 40mm), this rail-guided design ensures exceptional alignment stability and repeatable gripping accuracy across automated processes. As a human-hand replacement solution, it significantly enhances production efficiency while maintaining operational safety in pick-and-place, assembly, and material handling applications.
Key features include integrated linear guide rails for reduced deflection, optimized gripping force transmission, and compatibility with various jaw configurations. The HFKL series exemplifies AIRTAC's commitment to delivering industrial-grade pneumatic gripping solutions with enhanced durability and maintenance efficiency. Category: Parallel Pneumatic Grippers | Brand: AIRTAC | Series: HFKL
AirTAC HFKL20F Guided Parallel Pneumatic Gripper Specifications
- Model: HFKL20F
- Type: Guided parallel gripper (double-acting)
- Bore size: Ø20mm
- Stroke per jaw: 0-12mm (adjustable)
- Operating pressure: 0.1-0.7 MPa
- Port size: M5 × 0.8 (dual ports on both ends)
- Guide rail type: Dual linear ball bearings
- Repeat accuracy: ±0.02mm
- Max gripping force: 88N @ 0.6MPa
- Weight: 680g (including rails)
- Body dimensions: 100mm(L) × 42mm(W) × 28mm(H)
- Rail length: 100mm (standard)
- Material: Anodized aluminum body, hardened steel guide rails
- Seal material: NBR rubber
- Temperature range: -10℃ to 80℃
- Protection rating: IP40
- Mounting options: 4×M4 threaded holes on base
Precision parallel gripper with integrated linear guides, featuring zero backlash operation and adjustable stroke control. The hardened steel rails provide exceptional rigidity for high-precision part positioning. Includes dual cushioning adjustment screws for smooth motion termination. Compatible with ISO 9409-1 mounting interfaces.
Typical Applications:
- PCB component insertion machines
- Automated optical inspection (AOI) systems
- Pharmaceutical blister packaging lines
- Robotic tool changing stations
- Precision gear assembly fixtures
Installation note:
Apply lithium soap-based grease to guide rails during maintenance.
Use alignment jig (PN: AGJ-HFKL20) for multi-gripper configurations
to ensure parallel accuracy within 0.05mm across units.
| Property | Property Value |
|---|---|
| sku | HFKL20F |
| Gripper Optional Types | Bottom Mounting Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
| Stroke | 18mm |
