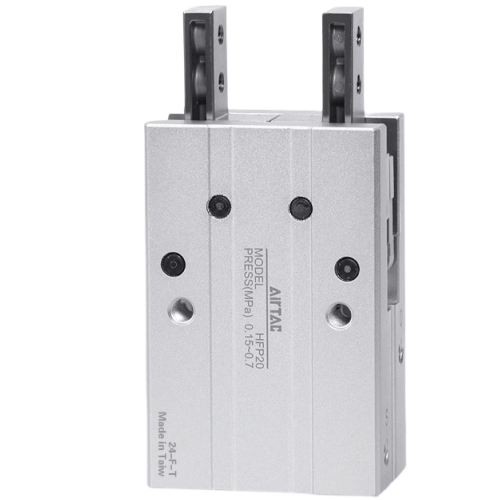

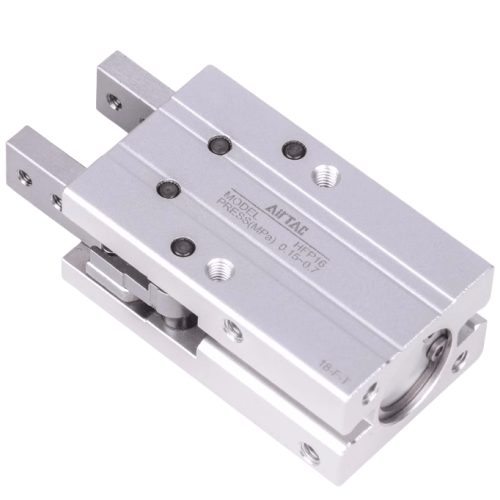

Airtac HFP Mechanical Parallel Type Pneumatic Gripper HFP10N
2、Metal spacer between jaws and body minimizes wear and extends service life;
3、Enlarged jaw contact area within body reduces wobbling and improves gripping accuracy;
4、Clamping force exceeds opening force by 20%~30% (actuated by piston rod extension for clamping/retraction for release);
5、Three-sided mounting capability ensures versatile installation in diverse applications;
6、Standard built-in magnet enables seamless sensor integration for enhanced control.
Category: Parallel Grippers | Brand: AirTAC | Series: HFP
AirTAC HFP10N Mechanical Parallel Pneumatic Gripper Specifications
- Model: HFP10N
- Type: Mechanical parallel gripper (double-acting)
- Bore size: Φ10mm
- Gripping force: 15N (adjustable via pressure)
- Stroke per jaw: 4mm (total opening 8mm)
- Operating pressure: 0.2–0.7 MPa
- Air consumption: 2.2cm³/stroke
- Weight: 85g ±2g
- Dimensions: 50mm(L) × 32mm(W) × 24mm(H)
- Mounting pattern: 16mm pitch M3 threaded holes
- Piston material: Hard anodized aluminum alloy
- Seal type: NBR wear-resistant seals
- Temperature range: -10℃ to 80℃
- Repeat accuracy: ±0.02mm
- Max operating speed: 100mm/s
- Lubrication: Pre-lubricated (maintenance-free)
Compact parallel gripper with self-centering jaws, optimized for precision handling of small components. Features symmetrical force distribution and zero backlash design for consistent gripping performance. Integrated guide rods ensure smooth linear motion even under side loads. Compatible with ISO 9409-1 mounting interfaces.
- PCB component insertion machines
- Watch movement assembly automation
- Micro-electronic connector handling
- Pharmaceutical blister packaging lines
- 3C product testing equipment
Operation tip:
For fragile objects, use 0.2-0.3MPa pressure with silicone jaw pads.
Regular cleaning of guide rails with non-residue compressed air recommended every 50,000 cycles.
- Custom jaw plates (aluminum/PTFE/stainless steel)
- Magnetic sensor kit (D-M9N)
- Anti-vibration mounting brackets
- Low-friction variant (HFP10N-LF) for high-speed applications
| Property | Property Value |
|---|---|
| sku | HFP10N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M3×0.5 |
| Maximum Stroke Length | 30mm |
| Bore Diameter | <10mm> |
