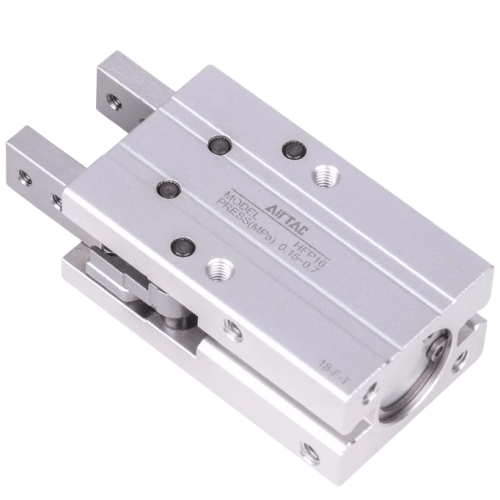

Airtac HFP Mechanical Parallel Type Pneumatic Gripper HFP16N
2、Metal spacer between jaws and body minimizes wear and extends service life;
3、Enlarged jaw contact area within body reduces wobbling and improves gripping accuracy;
4、Clamping force exceeds opening force by 20%~30% (actuated by piston rod extension for clamping/retraction for release);
5、Three-sided mounting capability ensures versatile installation in diverse applications;
6、Standard built-in magnet enables seamless sensor integration for enhanced control.
Category: Parallel Grippers | Brand: AirTAC | Series: HFP
AirTAC HFP16N Mechanical Parallel Gripper Specifications
- Model: HFP16N Series
- Type: Dual-acting parallel jaw mechanical gripper
- Gripping force: [email protected] / [email protected]
- Stroke per jaw: 3mm (Standard), customizable 1-6mm
- Operating pressure: 0.1-0.7 MPa
- Temperature range: -20℃ to 80℃
- Port size: M5x0.8 (PT1/8 adapter optional)
- Repeat accuracy: ±0.05mm
- Body material: Anodized aluminum alloy
- Jaw material: Stainless steel (Standard) / Aluminum alloy (Optional)
- Seal material: NBR (Nitrile rubber)
- Weight: 210g ±5g
- Dimensions:
- Closed state: 68mm(L) × 32mm(W) × 25mm(H)
- Max open state: 74mm(L) × 32mm(W) × 25mm(H)
- Mounting center distance: 40mm
- Protection class: IP54 (Dust & splash resistant)
Precision-engineered parallel gripper with wedge mechanism amplification, delivering 2.5x force multiplication compared to standard models. Features dual piston guide rods for enhanced stability and anti-rotation design maintaining ±0.02mm parallelism during operation. Optimized for high-cycle applications with built-in shock absorption chambers.
- PCB component insertion machines
- Micro-motor shaft handling systems
- Watch movement assembly automation
- Pharmaceutical blister packaging lines
- Optical lens polishing fixtures
Operational guidance:
For precision tasks, maintain air supply at 0.4-0.6MPa with 5μm filtration.
Apply silicone-based grease (ISO VG10 grade) quarterly. Avoid lateral impacts exceeding 50N.
- Magnetic sensor slots (Slot width: 5.5mm)
- High-temperature seals (Up to 120℃)
- Anti-corrosion coating (Salt spray test 500hrs)
- Low-friction PTFE guide bushings
| Property | Property Value |
|---|---|
| sku | HFP16N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Maximum Stroke Length | <40mm> |
| Bore Diameter | 16mm |
