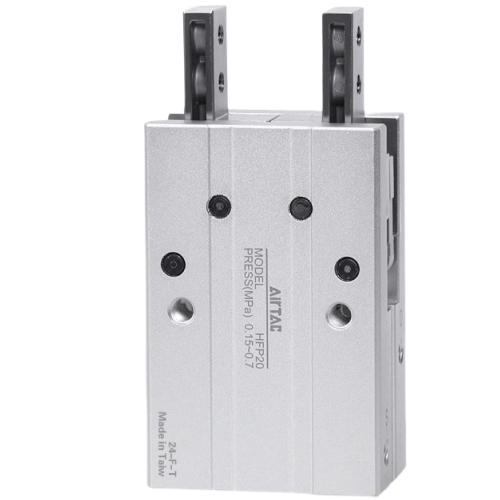

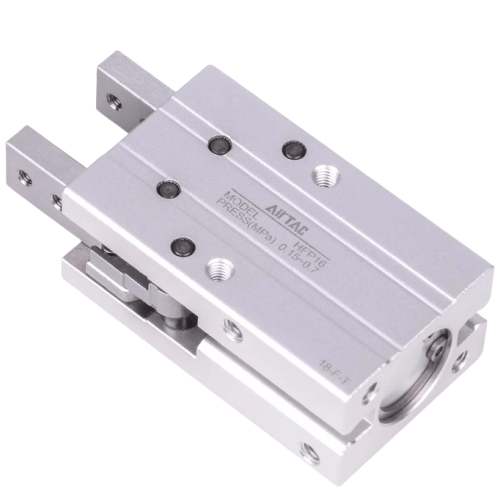

Airtac HFP Mechanical Parallel Type Pneumatic Gripper HFP20
2、Metal spacer between jaws and body minimizes wear and extends service life;
3、Enlarged jaw contact area within body reduces wobbling and improves gripping accuracy;
4、Clamping force exceeds opening force by 20%~30% (actuated by piston rod extension for clamping/retraction for release);
5、Three-sided mounting capability ensures versatile installation in diverse applications;
6、Standard built-in magnet enables seamless sensor integration for enhanced control.
Category: Parallel Grippers | Brand: AirTAC | Series: HFP
AirTAC HFP20 Parallel Mechanical Gripper Specifications
- Model: HFP20
- Type: Parallel movement (dual-piston mechanical linkage)
- Gripping force: 25-180N (adjustable via air pressure)
- Stroke per jaw: 0-5mm (standard), customizable up to 10mm
- Operating pressure: 0.2-0.7 MPa
- Port size: M5x0.8 (dual ports for push/pull operation)
- Repeat accuracy: ±0.02mm
- Material: Anodized aluminum body, hardened steel guide rods
- Temperature range: -10℃ to 80℃
- Protection rating: IP54 (standard), IP67 optional
- Weight: 320g ±5g
- Dimensions: 76mm(L) × 34mm(W) × 25mm(H)
- Mounting pattern: 20mm spaced M4 threaded holes (4x)
- Response time: 0.1s (at 0.5MPa)
- Lubrication: Pre-lubricated (maintenance-free for 5M cycles)
High-precision parallel gripper with anti-rotation design for stable part handling. Features twin piston chambers with synchronized motion control, ensuring symmetrical gripping force distribution. The hardened chrome-plated shafts and dual angular contact bearings enable smooth operation under side loads. Compatible with vacuum cups or custom tooling via front mounting threads.
- PCB component insertion machines
- CNC machine tool loading/unloading
- Pharmaceutical blister packaging lines
- Precision gear assembly stations
- Micro motor shaft handling systems
- Optical lens positioning devices
Operation tip:
For delicate objects, use 0.2-0.3MPa pressure with silicone pads.
Install magnetic sensors in side slots (2mm x 5mm groove) for position feedback.
Avoid lateral impacts exceeding 50N during misalignment.
| Property | Property Value |
|---|---|
| sku | HFP20 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Maximum Stroke Length | 60mm |
| Bore Diameter | <20mm> |
