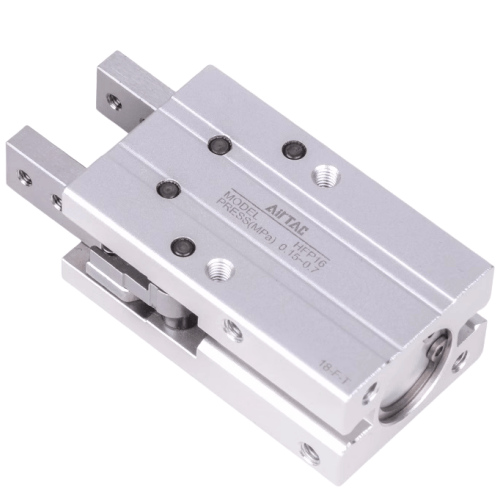

Airtac HFP Mechanical Parallel Type Pneumatic Gripper HFP20N
2、Metal spacer between jaws and body minimizes wear and extends service life;
3、Enlarged jaw contact area within body reduces wobbling and improves gripping accuracy;
4、Clamping force exceeds opening force by 20%~30% (actuated by piston rod extension for clamping/retraction for release);
5、Three-sided mounting capability ensures versatile installation in diverse applications;
6、Standard built-in magnet enables seamless sensor integration for enhanced control.
Category: Parallel Grippers | Brand: AirTAC | Series: HFP

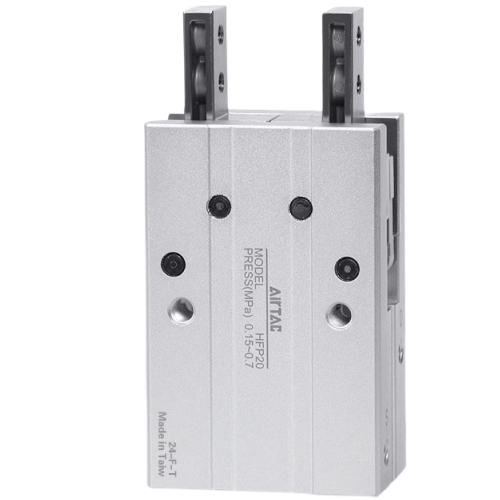

AirTAC HFP20N Parallel Mechanical Gripper Specifications
- Model: HFP20N
- Type: Parallel jaw mechanical gripper (double piston design)
- Bore size: 20mm
- Operating pressure: 0.1-0.7 MPa
- Clamping force: 28N @ 0.5 MPa
- Stroke per jaw: 5mm (standard), customizable 5-20mm
- Mounting pattern: 32mm × 32mm (ISO 9409-1 compatible)
- Port size: M5 × 0.8 (dual ports for simultaneous actuation)
- Material: Aluminum alloy body, NBR seals
- Temperature range: -10℃ to 80℃
- Repeatability: ±0.02mm
- Weight: 0.25kg
- Dimensions: 60mm(L) × 30mm(W) × 20mm(H)
- Surface treatment: Hard anodized (black)
- Lubrication: Pre-lubricated (use ISO VG32 turbine oil if maintenance required)
High-precision parallel gripper featuring symmetrical force distribution and zero backlash gear mechanism. The dual piston design ensures synchronized jaw movement with 98% mechanical efficiency. Optimized for high-cycle applications (up to 1.5 million cycles at rated load) with integrated wear compensation.
- PCB component insertion in electronics assembly
- Precision part handling in watch manufacturing
- Pharmaceutical blister pack loading systems
- SCARA robot end-effector tooling
- Automated micro-screw fastening stations
Installation note:
For maximum grip stability, maintain 0.3-0.5 MPa operating pressure during alignment.
Use anti-vibration washers when mounting on servo-driven actuators. Lubricate guide rods
every 50,000 cycles in dusty environments.
| Property | Property Value |
|---|---|
| sku | HFP20N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Maximum Stroke Length | 60mm |
| Bore Diameter | <20mm> |
