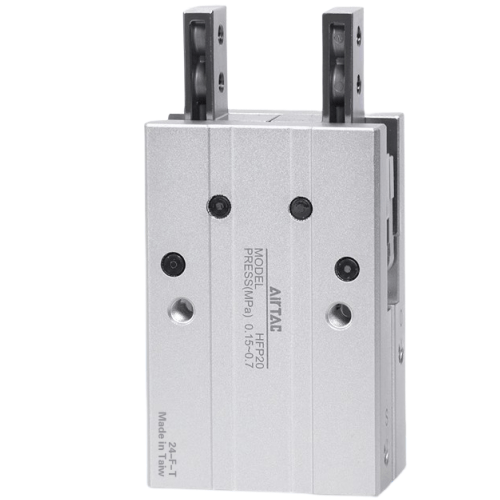

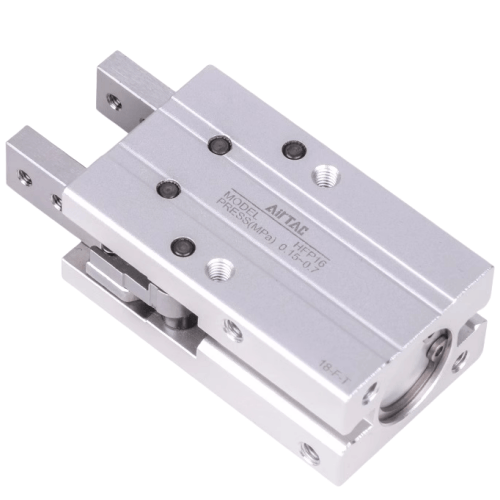

Airtac HFP Mechanical Parallel Type Pneumatic Gripper HFP25N
2、Metal spacer between jaws and body minimizes wear and extends service life;
3、Enlarged jaw contact area within body reduces wobbling and improves gripping accuracy;
4、Clamping force exceeds opening force by 20%~30% (actuated by piston rod extension for clamping/retraction for release);
5、Three-sided mounting capability ensures versatile installation in diverse applications;
6、Standard built-in magnet enables seamless sensor integration for enhanced control.
Category: Parallel Grippers | Brand: AirTAC | Series: HFP
AirTAC HFP25N Parallel Mechanical Gripper Specifications
- Model: HFP25N
- Type: Parallel jaw mechanical gripper (double-acting)
- Bore size: 25mm
- Operating pressure: 0.1-0.7 MPa
- Max gripping force: 58N @0.4MPa
- Stroke per jaw: 5mm (total 10mm opening)
- Repeat accuracy: ±0.02mm
- Mounting pattern: 4×M4 threaded holes (16mm square)
- Pneumatic ports: M5×0.8 (standard)
- Weight: 0.28kg
- Dimensions: 73mm(L) × 34mm(W) × 38mm(H)
- Material: Anodized aluminum body, hardened steel guide rods
- Seal type: NBR rubber (oil-resistant)
- Temperature range: -10℃ to 80℃
- Shock resistance: 50m/s² (5G)
- Protection rating: IP54 (dust/water resistant)
Precision parallel gripper with symmetrical force distribution, featuring zero-backlash design through dual linear guide rods. The hardened steel jaws maintain dimensional stability under repeated use, while the compact profile enables cluster installations. Requires 5μm filtered air with 1-3 drops of ISO VG32 oil per m³.
- PCB component insertion machines
- Pharmaceutical blister packaging systems
- Precision bearing assembly stations
- Automated cosmetic product handling
- Battery cell sorting/palletizing
Operation tip:
Maintain 0.05-0.1mm jaw gap when fully closed for optimal part release.
Lubricate guide rods every 500,000 cycles using silicone-free grease.
- Custom jaw plates available (V-groove, rubber-padded, etc.)
- Optional magnetic sensor slots for position feedback
- High-speed variant (HFP25N-HS) with reduced mass for <0.1s cycle time
| Property | Property Value |
|---|---|
| sku | HFP25N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Maximum Stroke Length | 70mm |
| Bore Diameter | <25 mm> |
