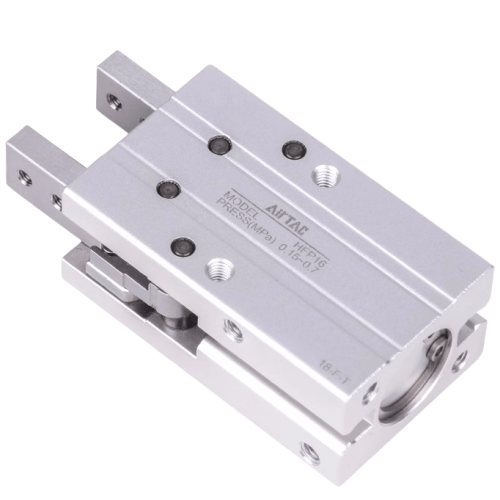

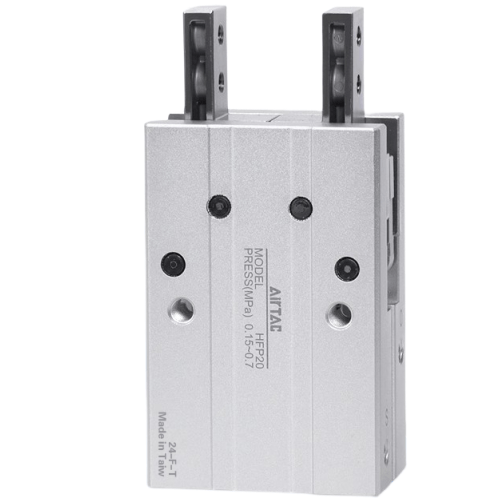

Airtac HFP Mechanical Parallel Type Pneumatic Gripper HFP32
$176.77
Regular price
$184.27
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFP32
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Mechanical lever mechanism with parallel opening/closing structure, achieving cost efficiency while maintaining precision requirements;
2、Metal spacer between jaws and body minimizes wear and extends service life;
3、Enlarged jaw contact area within body reduces wobbling and improves gripping accuracy;
4、Clamping force exceeds opening force by 20%~30% (actuated by piston rod extension for clamping/retraction for release);
5、Three-sided mounting capability ensures versatile installation in diverse applications;
6、Standard built-in magnet enables seamless sensor integration for enhanced control.
Category: Parallel Grippers | Brand: AirTAC | Series: HFP
Operational guidance:
Maintain 0.3-1.0μm filtration with oil mist lubrication (ISO VG32 recommended).
For vertical installations, use locking nuts on guide rods to prevent gravitational drift.
Maximum side load capacity: 50N (perpendicular to jaw motion axis).
2、Metal spacer between jaws and body minimizes wear and extends service life;
3、Enlarged jaw contact area within body reduces wobbling and improves gripping accuracy;
4、Clamping force exceeds opening force by 20%~30% (actuated by piston rod extension for clamping/retraction for release);
5、Three-sided mounting capability ensures versatile installation in diverse applications;
6、Standard built-in magnet enables seamless sensor integration for enhanced control.
Category: Parallel Grippers | Brand: AirTAC | Series: HFP
AirTAC HFP32 Parallel Mechanical Gripper Specifications
- Model: HFP32
- Type: Double-acting parallel gripper (mechanical linkage)
- Bore size: Ø32mm
- Stroke per jaw: 0-6mm (adjustable)
- Operating pressure: 0.2-0.7 MPa
- Temperature range: -10℃ to 80℃
- Port size: Rc1/8 (G1/8 optional)
- Repeat accuracy: ±0.02mm
- Max gripping force: 240N @0.6MPa
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR
- Mounting pattern: 4x M5 threaded holes (32mm square spacing)
- Fluid compatibility: Filtered air (ISO 8573-1:2010 Class 3.4.2)
- Speed adjustment: Built-in cushioning (2-200mm/s adjustable via needle valve)
- Weight: 0.82kg
- Dimensions: 145mm(L) × 32mm(W) × 40mm(H)
Heavy-duty parallel gripper with dual piston mechanism and precision ground guide rods, engineered for high-accuracy part positioning. Features anti-rotation jaw design and adjustable stroke limiter. Compatible with ISO 9409-1 mounting interfaces for robotic integration.
Typical Applications:
- CNC machine tool workpiece clamping
- Automated packaging line product transfer
- Robotic assembly of electronic connectors
- Precision gear component handling
- Medical device manufacturing fixtures
- 3C industry component insertion systems
Operational guidance:
Maintain 0.3-1.0μm filtration with oil mist lubrication (ISO VG32 recommended).
For vertical installations, use locking nuts on guide rods to prevent gravitational drift.
Maximum side load capacity: 50N (perpendicular to jaw motion axis).
| Property | Property Value |
|---|---|
| sku | HFP32 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Maximum Stroke Length | 90mm |
| Bore Diameter | <32 mm> |
