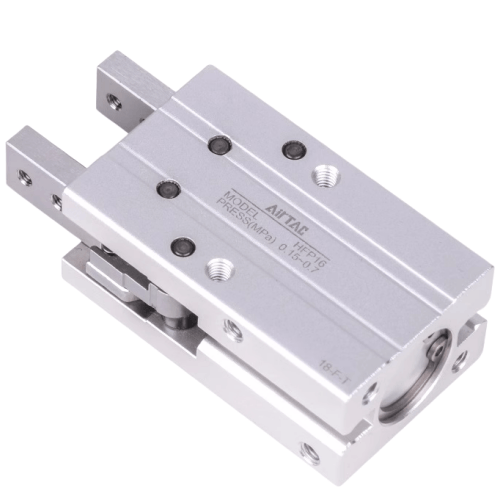

Airtac HFP Mechanical Parallel Type Pneumatic Gripper HFP32N
2、Metal spacer between jaws and body minimizes wear and extends service life;
3、Enlarged jaw contact area within body reduces wobbling and improves gripping accuracy;
4、Clamping force exceeds opening force by 20%~30% (actuated by piston rod extension for clamping/retraction for release);
5、Three-sided mounting capability ensures versatile installation in diverse applications;
6、Standard built-in magnet enables seamless sensor integration for enhanced control.
Category: Parallel Grippers | Brand: AirTAC | Series: HFP
AirTAC HFP32N Mechanical Parallel Gripper Specifications
- Model: HFP32N
- Type: Parallel jaw mechanical gripper (double-acting)
- Gripping force: 60-100N (adjustable via air pressure)
- Operating pressure: 0.1-0.7 MPa
- Max stroke per jaw: 10mm
- Bore size: φ32mm
- Actuation method: Pneumatic (requires 4mm pneumatic fittings)
- Material: Anodized aluminum body, hardened stainless steel guide rods
- Repeat accuracy: ±0.05mm
- Port size: M5x0.8 (standard)
- Temperature range: -10℃ to 80℃
- Weight: 480g ±2%
- Dimensions: 105mm(L) × 42mm(W) × 45mm(H)
- Seal material: Heat-resistant NBR
- Max operating speed: 200mm/s
- Mounting: 4x M4 threaded holes (6mm depth)
High-precision parallel gripper with symmetrical force distribution, featuring dual linear guide rails for smooth operation. The hardened jaws maintain positional accuracy through 2 million cycles. Includes adjustable stoppers for stroke limitation and anti-vibration pads for high-speed applications. Compatible with ISO 9409-1 mounting interfaces.
- PCB component insertion in electronics assembly
- Carton box handling in packaging lines
- Precision gear positioning in automotive manufacturing
- Laboratory sample handling robots
- Medical device micro-part assembly
Installation tip:
Lubricate guide rods with ISO VG32 hydraulic oil before initial use.
Maintain 0.3-0.5MPa air pressure during alignment calibration.
Avoid lateral loads exceeding 30N to prevent guide rail deformation.
| Property | Property Value |
|---|---|
| sku | HFP32N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Maximum Stroke Length | 90mm |
| Bore Diameter | <32 mm> |
