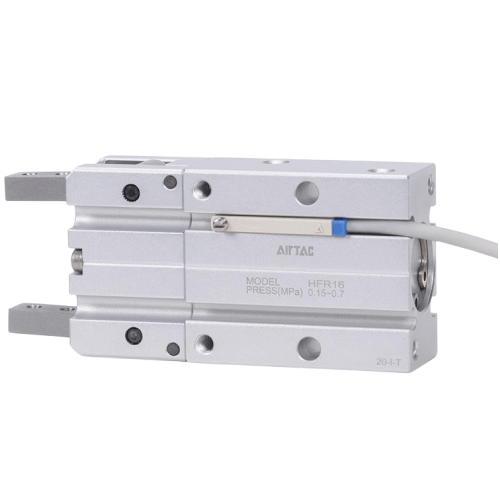

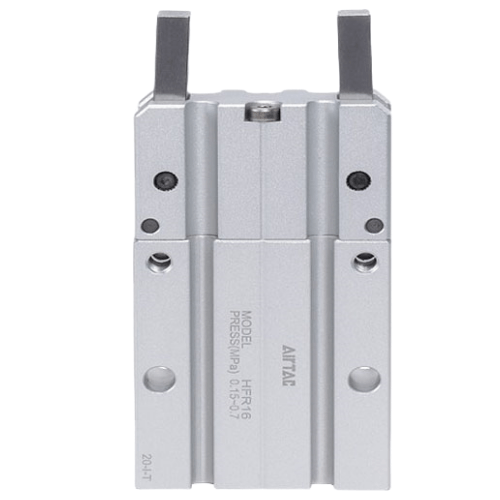

Airtac HFR 180° Pneumatic Gripper HFR10
1. Integrated wedge mechanism design delivers superior clamping force output;
2. Anti-collision cushion integrated at piston front effectively reduces metallic impact noise during jaw release operation;
3. Precision alignment dowel pin holes on base surface ensure enhanced mounting accuracy and maintain positional consistency during repeated assembly/disassembly cycles;
4. Exceptional gripping repeatability (±0.02mm) optimized for automated equipment integration;
5. Comprehensive series configuration with multiple specifications accommodates diverse workpiece geometries and handling requirements.
Category: Gripper Cylinders | Brand: AIRTAC | Series: HFR
AirTAC HFR 180° Pneumatic Gripper HFR10 Specifications
- Model: HFR10
- Type: Parallel jaw 180° stroke gripper
- Bore size: Φ10mm
- Operating pressure: 0.2-0.7 MPa (29-102 PSI)
- Max gripping force: 12N at 0.5MPa
- Stroke per jaw: 5mm (total 10mm opening)
- Repeat accuracy: ±0.02mm
- Operating temperature: -10℃ to 70℃
- Air port size: M5x0.8 (standard), optional NPT1/8
- Material: Anodized aluminum body, polyurethane seals
- Weight: 0.18kg
- Dimensions: 52mm(L) × 28mm(W) × 25mm(H)
- Response time: 0.1s (open/close cycle)
- Max cycling rate: 5 cycles/sec
- Mounting: Standard ISO 9409-1 pattern
Compact 180° parallel gripper with optimized force-to-weight ratio, featuring dual piston drive mechanism for symmetrical gripping. Precision ground guide rods ensure smooth operation and minimal particle generation. Compatible with vacuum pads or custom tooling via M3 threaded mounting points on jaws.
- PCB handling in electronics assembly
- Micro-component positioning in watchmaking
- Precision lens manipulation in optical systems
- Small part sorting in pharmaceutical packaging
- Robotic end-effector for educational/research robots
Operation tip:
For delicate objects, use 0.2-0.3MPa pressure with silicone jaw pads.
Lubricate guide rods monthly with ISO VG32 pneumatic oil. Avoid lateral
loads exceeding 5N to maintain alignment accuracy.
| Property | Property Value |
|---|---|
| sku | HFR10 |
| Actuation Type | Double Acting |
| Mounting Type | Standard Type |
| Port Size | M5×0.8 |
| Cushion Type | Bumper Pad |
| Bore Diameter | <10mm> |
