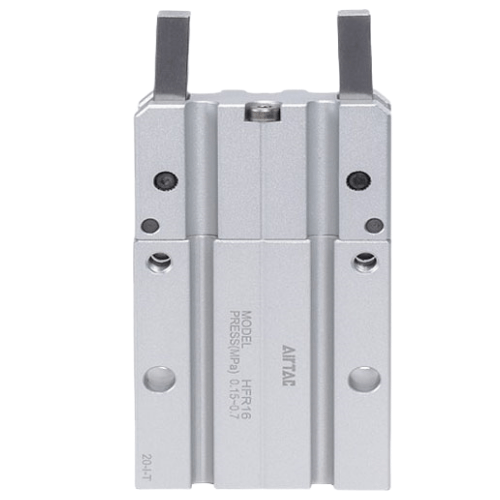

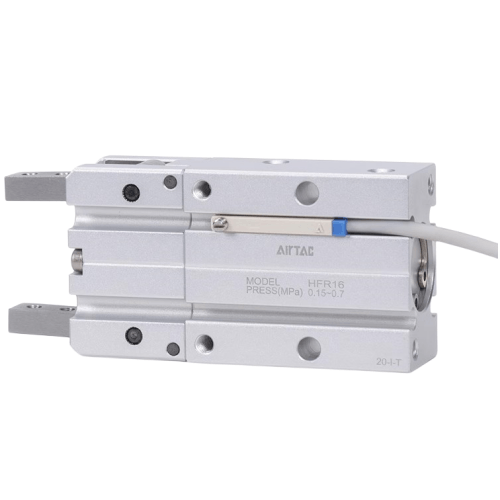

Airtac HFR 180° Pneumatic Gripper HFR10N
1. Integrated wedge mechanism design delivers superior clamping force output;
2. Anti-collision cushion integrated at piston front effectively reduces metallic impact noise during jaw release operation;
3. Precision alignment dowel pin holes on base surface ensure enhanced mounting accuracy and maintain positional consistency during repeated assembly/disassembly cycles;
4. Exceptional gripping repeatability (±0.02mm) optimized for automated equipment integration;
5. Comprehensive series configuration with multiple specifications accommodates diverse workpiece geometries and handling requirements.
Category: Gripper Cylinders | Brand: AIRTAC | Series: HFR
AirTAC HFR 180° Swing Type Pneumatic Gripper HFR10N Specifications
- Model: HFR10N
- Type: 180° swing angle parallel gripper
- Action style: Double-acting
- Operating pressure: 0.1-0.7 MPa (14.5-101.5 PSI)
- Port size: M5x0.8 (standard) with NBR seals
- Max stroke per jaw: 6mm (±0.2mm)
- Gripping force: 10N (adjustable via pressure)
- Repeat accuracy: ±0.02mm
- Operating temperature: -10℃ to 70℃ (14°F to 158°F)
- Material: Aluminum alloy body, polyurethane cushion pads
- Mounting: Dual M4 threaded holes (ISO9409-1 compatible)
- Weight: 250g (0.55 lbs)
- Dimensions: 65mm(L) × 42mm(W) × 25mm(H)
- Air consumption: 12.5cm³ per cycle
- Response time: 0.1s (at 0.5MPa)
- Max operating frequency: 5 cycles/sec
Precision 180° swing gripper featuring zero-backlash motion and anti-rotation guide rods for stable part orientation changes. The dual-piston design ensures symmetrical force distribution, while replaceable cushion pads reduce impact noise below 75dB. Includes built-in air vents with dust filters (replaceable).
- PCB component insertion machines
- Micro-motor shaft handling systems
- Watch assembly precision flipping
- Pharmaceutical blister packaging
- Optical lens positioning stages
- SCARA robot end-effector tooling
Operational note:
For optimal performance, use 40µm filtered dry air with 1-3 drops of ISO VG32 turbine oil per m³.
Regular lubrication intervals (every 50,000 cycles recommended) significantly extend seal life.
