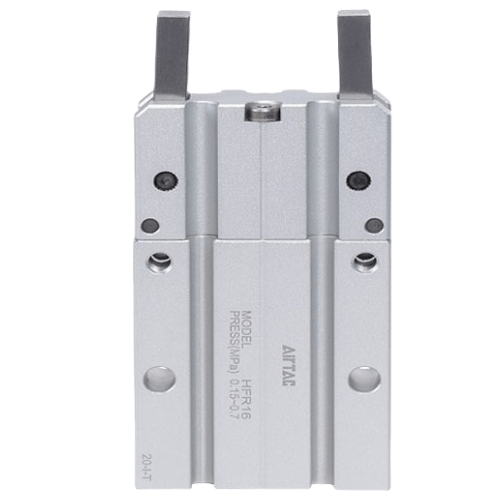

Airtac HFR 180° Pneumatic Gripper HFR16
1. Integrated wedge mechanism design delivers superior clamping force output;
2. Anti-collision cushion integrated at piston front effectively reduces metallic impact noise during jaw release operation;
3. Precision alignment dowel pin holes on base surface ensure enhanced mounting accuracy and maintain positional consistency during repeated assembly/disassembly cycles;
4. Exceptional gripping repeatability (±0.02mm) optimized for automated equipment integration;
5. Comprehensive series configuration with multiple specifications accommodates diverse workpiece geometries and handling requirements.
Category: Gripper Cylinders | Brand: AIRTAC | Series: HFR
AirTAC HFR 180° Parallel Gripper HFR16 Technical Specifications
- Model: HFR16
- Type: 180° parallel opening/closing (double-acting)
- Bore size: Φ16mm
- Operating pressure: 0.1–0.7 MPa
- Port thread: M5×0.8 (standard) / PT1/8 optional
- Max gripping force: 31.4N @0.5MPa
- Stroke per jaw: 4mm (total opening: 8mm)
- Repeat accuracy: ±0.1mm
- Weight: 210g ±5g
- Dimensions: 70mm(L) × 32mm(W) × 38mm(H)
- Material: Aluminum alloy body / NBR seals
- Temperature range: -20℃ to 80℃
- Air consumption: 3.0cm³/stroke (single action)
- Response time: 50ms @0.5MPa (open/close cycle)
- Protection rating: IP65
The HFR16 180° parallel gripper features a symmetrical dual-piston design with through-shaft construction for precise centering motion. Its compact profile and hardened guide rods ensure minimal deflection during high-speed operations. The anodized surface treatment provides corrosion resistance in humid environments. Requires ISO 8573-1 class 3 or cleaner compressed air.
- PCB board handling in electronics assembly
- Precision part sorting in automated packaging lines
- End-of-arm tooling for 6-axis robots
- Medical device component assembly
- Optical lens positioning systems
Installation tips:
Mount using M4 screws with 25mm center spacing. Apply silicone-free lubricant
(ISO VG32 grade) to air ports during maintenance. Avoid side-load exceeding
15N during operation. For vertical mounting, install drip-proof cover (optional accessory).
| Property | Property Value |
|---|---|
| sku | HFR16 |
| Actuation Type | Double Acting |
| Mounting Type | Standard Type |
| Port Size | M5×0.8 |
| Cushion Type | Bumper Pad |
| Bore Diameter | 16mm |
