Airtac HFR 180° Pneumatic Gripper HFR25N
$130.24
Regular price
$137.74
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFR25N
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

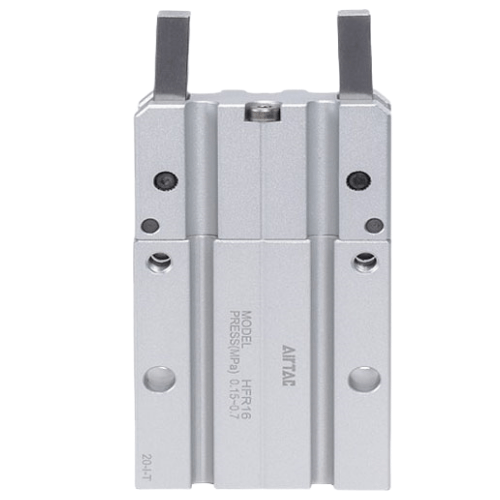

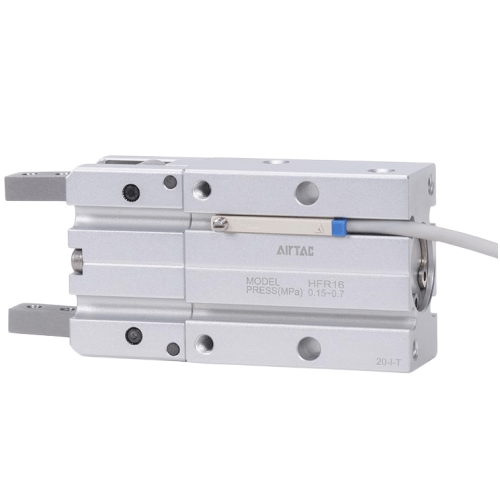

HFR 180° Pneumatic Gripper Features:
1. Integrated wedge mechanism design delivers superior clamping force output;
2. Anti-collision cushion integrated at piston front effectively reduces metallic impact noise during jaw release operation;
3. Precision alignment dowel pin holes on base surface ensure enhanced mounting accuracy and maintain positional consistency during repeated assembly/disassembly cycles;
4. Exceptional gripping repeatability (±0.02mm) optimized for automated equipment integration;
5. Comprehensive series configuration with multiple specifications accommodates diverse workpiece geometries and handling requirements.
Category: Gripper Cylinders | Brand: AIRTAC | Series: HFR
Installation best practice:
Use M4x8mm SHCS for mounting with 0.4-0.6Nm torque. For high-speed applications (>300mm/s),
install cushion kits (AKH-25 sold separately) to prevent chatter. Maintain 40μm filtered air supply.
1. Integrated wedge mechanism design delivers superior clamping force output;
2. Anti-collision cushion integrated at piston front effectively reduces metallic impact noise during jaw release operation;
3. Precision alignment dowel pin holes on base surface ensure enhanced mounting accuracy and maintain positional consistency during repeated assembly/disassembly cycles;
4. Exceptional gripping repeatability (±0.02mm) optimized for automated equipment integration;
5. Comprehensive series configuration with multiple specifications accommodates diverse workpiece geometries and handling requirements.
Category: Gripper Cylinders | Brand: AIRTAC | Series: HFR
AirTAC HFR 180° Pneumatic Gripper HFR25N Technical Details
- Model: HFR25N (180° parallel jaw type)
- Bore size: Ø25mm
- Operating pressure: 0.1-0.7 MPa
- Max gripping force: 112N @0.5MPa
- Stroke per jaw: 8mm (total 16mm opening)
- Repeat accuracy: ±0.1mm
- Actuation type: Double-acting
- Port size: M5x0.8 (standard) with NPT1/8 adaptor option
- Weight: 480g ±2% (aluminum alloy body)
- Dimensions: 96mm(L) × 58mm(W) × 45mm(H)
- Seal material: Heat-resistant NBR (-10℃ to 120℃)
- Response time: 50ms @0.5MPa
- Mounting pattern: ISO 9409-1 compatible
- Max operating speed: 500mm/s
- Lubrication: Pre-lubricated (maintenance-free for 5,000km stroke)
High-precision parallel gripper with 180° jaw rotation, featuring anti-vibration design for high-cycle automation. The hardened guide rails and dual piston design ensure smooth operation under 1 million cycle rating. Compatible with vacuum cups/magnetic tools via T-slot mounting.
Industrial Applications:
- PCB component insertion machines
- Bottle cap sorting & assembly lines
- CNC machine tool part handling
- Pharmaceutical blister packaging
- Robotic kitting systems (6-axis integration)
Installation best practice:
Use M4x8mm SHCS for mounting with 0.4-0.6Nm torque. For high-speed applications (>300mm/s),
install cushion kits (AKH-25 sold separately) to prevent chatter. Maintain 40μm filtered air supply.
Cycle test data: Achieves 98% grip consistency after 200,000 cycles with 0.5mm thick silicone pads. Not recommended for oils above ISO VG32 or particulate-laden environments without protective sleeves.
| Property | Property Value |
|---|---|
| sku | HFR25N |
| Actuation Type | Double Acting |
| Mounting Type | Open/Close Direction Through-hole Mounting Type |
| Port Size | M5×0.8 |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
