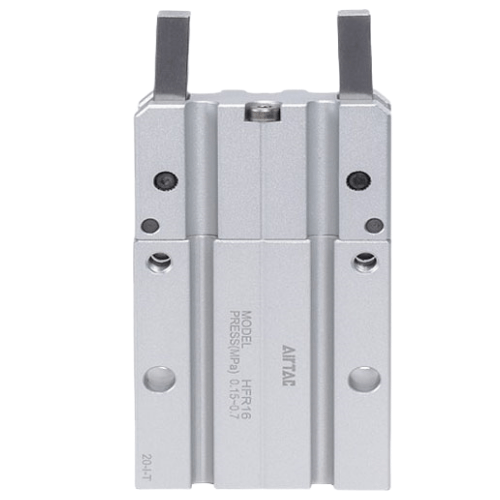

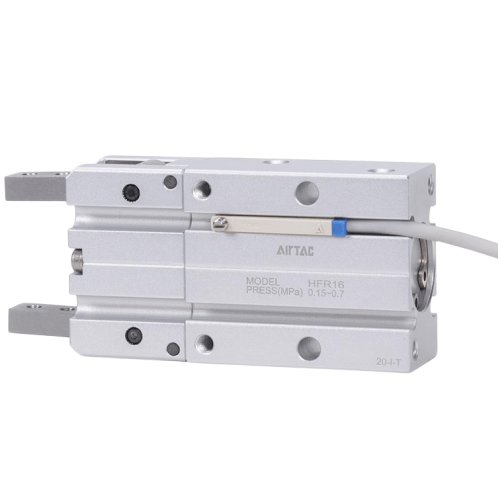

Airtac HFR 180° Pneumatic Gripper HFR32
1. Integrated wedge mechanism design delivers superior clamping force output;
2. Anti-collision cushion integrated at piston front effectively reduces metallic impact noise during jaw release operation;
3. Precision alignment dowel pin holes on base surface ensure enhanced mounting accuracy and maintain positional consistency during repeated assembly/disassembly cycles;
4. Exceptional gripping repeatability (±0.02mm) optimized for automated equipment integration;
5. Comprehensive series configuration with multiple specifications accommodates diverse workpiece geometries and handling requirements.
Category: Gripper Cylinders | Brand: AIRTAC | Series: HFR
AirTAC HFR 180° Parallel Gripper HFR32 Technical Details
- Model: HFR32-※ (※ indicates optional configurations)
- Type: 180° swing angle parallel gripper (double-acting)
- Bore size: Φ32mm
- Operating pressure: 0.05–0.7 MPa
- Gripping force: 56N~784N (adjustable via pressure)
- Stroke per jaw: 8mm (total 16mm opening)
- Repeat accuracy: ±0.1mm
- Operating temperature: -10℃ to 80℃
- Material: Aluminum alloy body, hardened steel guide rods
- Seals: NBR standard (FKM available for high-temp versions)
- Weight: 680g ±2%
- Dimensions: 118mm(L) × 62mm(W) × 52mm(H)
- Mounting pattern: 4×M5 threaded holes on 50×40mm centers
- Air connection: M5×0.8 dual ports (front/rear)
- Cycle life: 10 million cycles (NBR seals)
High-precision parallel jaw gripper with anti-rotation mechanism, featuring dual hardened guide rods for exceptional lateral stability during high-speed operations. The wedge-type force amplification design enables strong gripping at lower air pressures. Compatible with ISO 9409-1 mounting interfaces for robotic integration.
- CNC machine tool loading/unloading systems
- Electronics PCB handling with ESD-safe variants
- Pharmaceutical blister packaging lines
- Automotive fuel injector assembly
- 3C industry component insertion machines
Operational guidance:
For optimal performance, maintain 0.3-0.5μm filtration level and lubricate monthly with ISO VG32 turbine oil.
Avoid side impacts exceeding 30N during gripping operations. Use shock absorbers when cycle rates exceed 2Hz.
| Property | Property Value |
|---|---|
| sku | HFR32 |
| Actuation Type | Double Acting |
| Mounting Type | Standard Type |
| Port Size | M5×0.8 |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
