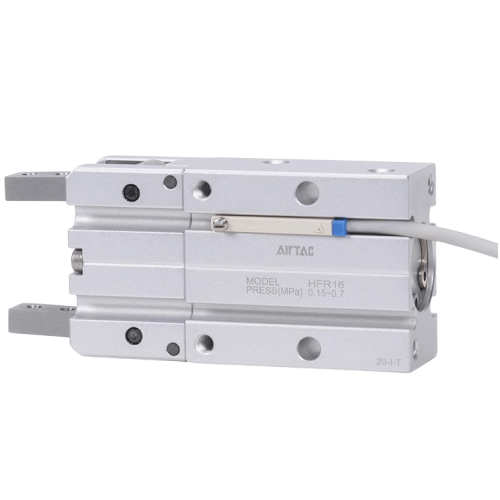

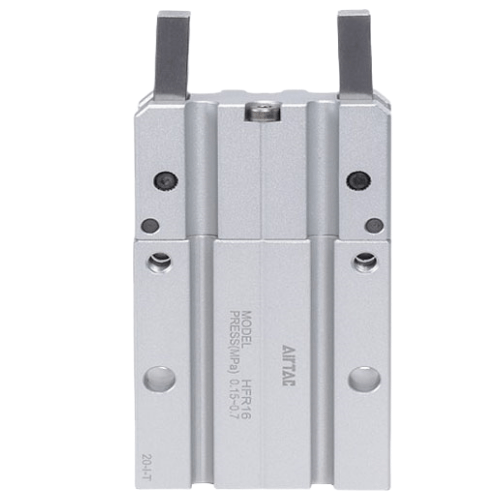

Airtac HFR 180° Pneumatic Gripper HFR32N
1. Integrated wedge mechanism design delivers superior clamping force output;
2. Anti-collision cushion integrated at piston front effectively reduces metallic impact noise during jaw release operation;
3. Precision alignment dowel pin holes on base surface ensure enhanced mounting accuracy and maintain positional consistency during repeated assembly/disassembly cycles;
4. Exceptional gripping repeatability (±0.02mm) optimized for automated equipment integration;
5. Comprehensive series configuration with multiple specifications accommodates diverse workpiece geometries and handling requirements.
Category: Gripper Cylinders | Brand: AIRTAC | Series: HFR
AirTAC HFR 180° Pneumatic Gripper HFR32N Specifications
- Model: HFR32N
- Type: 180° parallel stroke gripper (double-acting)
- Bore size: 32mm
- Gripping force: 85N @ 0.6MPa
- Operating pressure: 0.2–0.8 MPa
- Stroke per jaw: 0–16mm (adjustable)
- Repeat accuracy: ±0.05mm
- Port size: M5x0.8 (standard), NPT1/8 optional
- Operating medium: Dry air (ISO8573-1:2010 Class 3.4.3)
- Material: Aluminum alloy body, polyurethane seals
- Temperature range: -10℃ to 80℃
- Weight: 0.68kg
- Dimensions: 116mm(L) × 60mm(W) × 50mm(H)
- Mounting pattern: ISO 9409-1-32-4-M5
- Protection rating: IP54 (standard), IP67 optional
- Cycle life: 20 million cycles @ 0.5MPa
High-precision parallel gripper with 180° jaw rotation capability, featuring twin-piston torque amplification for stable gripping. The hardened anodized surface provides wear resistance in abrasive environments. Integrated cushioning adjustment screws allow smooth motion control without external valves.
- Robotic assembly of small engine components
- PCB handling in electronics manufacturing
- Precision orientation adjustment in optical lens assembly
- Food packaging line product flipping mechanisms
- Medical device assembly with cleanroom compatibility
Installation note:
For maximum grip stability, maintain 0.4-0.6MPa operating pressure.
Lubricate with ISO VG32 turbine oil if used in high-cycle (>500CPM) applications.
Avoid side load exceeding 30N during operation.
- Gripper jaw kits: AJH-32 series (aluminum/urethane variants)
- Mounting brackets: MMF32-15 (15mm offset adapter)
- Position sensor: M9PV series for closed-loop feedback
| Property | Property Value |
|---|---|
| sku | HFR32N |
| Actuation Type | Double Acting |
| Mounting Type | Open/Close Direction Through-hole Mounting Type |
| Port Size | M5×0.8 |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
