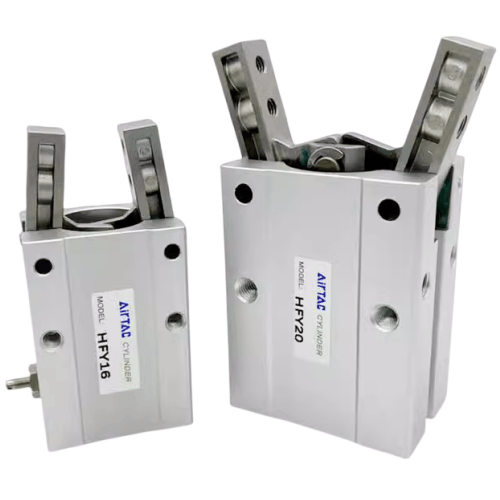

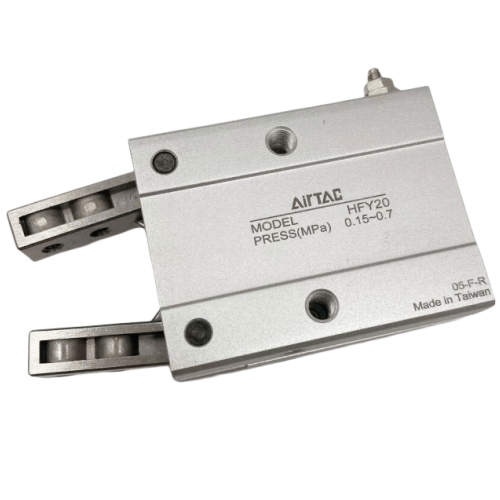

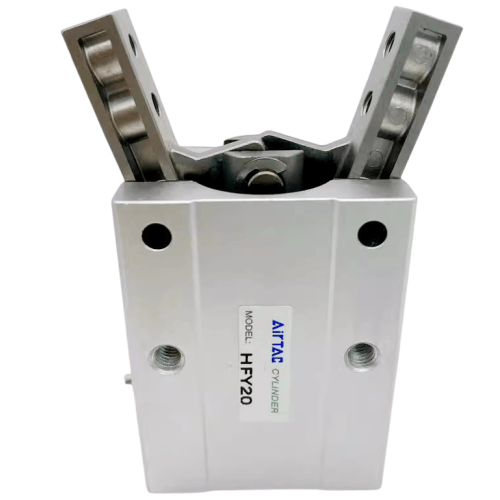

Airtac HFTY Y-Type Pneumatic Gripper HFTY10
2、Integrated adjustable flow control valve facilitates precise adjustment of jaw opening/closing speed;
3、Optimized jaw stroke design ensures broad application coverage;
4、High positioning accuracy enables precise and reliable workpiece handling;
5、Multiple mounting configurations enhance adaptability to diverse application scenarios;
6、Standard integrated magnets simplify sensor installation across all models.
Category: Rodless Gripper Cylinders , Brand: AIRTC , Series: HFTY
AirTAC HFTY Series Y-Type Pneumatic Finger HFTY10 Specifications
- Model: HFTY10
- Type: Double-acting parallel gripper (Y-shape)
- Gripping force: 15N (without guide rod), 7N (with guide rod)
- Stroke per finger: 0-5mm (adjustable)
- Operating pressure: 0.1-0.7 MPa
- Port size: M5 (standard), optional Rc1/8
- Repeat positioning accuracy: ±0.02mm
- Temperature range: -10℃ to 70℃
- Material: Aluminum alloy body, NBR seals
- Weight: 0.22 kg (bare unit), 0.28 kg (with guide rod)
- Dimensions: 58mm(L) × 34mm(W) × 40mm(H)
- Mounting pattern: 25mm spaced M3 threaded holes
- Max operating speed: 100mm/s
- Air consumption: 0.15L/stroke (at 0.5MPa)
Compact parallel gripper with anti-rotation design, featuring dual piston drive for symmetrical clamping force. Precision-ground guide rods ensure smooth linear motion. Includes built-in air cushioning adjustment (via needle valves) to prevent workpiece slippage. Compatible with ISO 15552 mounting standards.
- PCB component insertion machines
- Pharmaceutical blister packaging systems
- Automotive micro-part assembly stations
- Battery cell handling in cleanrooms
- 3C product testing equipment
Operation note:
Lubricate with ISO VG32 hydraulic oil monthly. Avoid lateral loads exceeding 5N.
For vacuum environments, use optional Viton seals (special order). Maximum
permissible moment: 0.15Nm.
| Property | Property Value |
|---|---|
| sku | HFTY10 |
| Port Size | M3×0.5 |
| Maximum Gripping Length | 30mm |
| Cushion Type | Bumper Pad |
| Bore Diameter | <10mm> |
