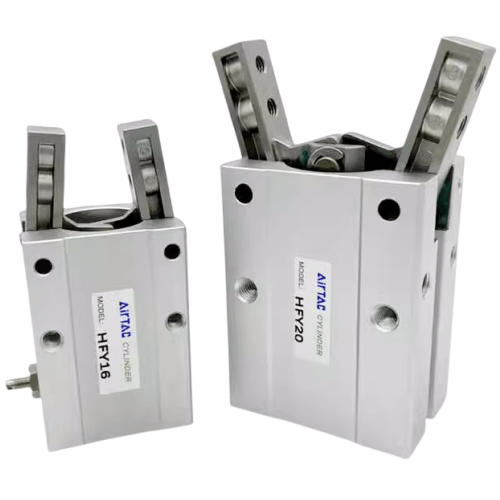

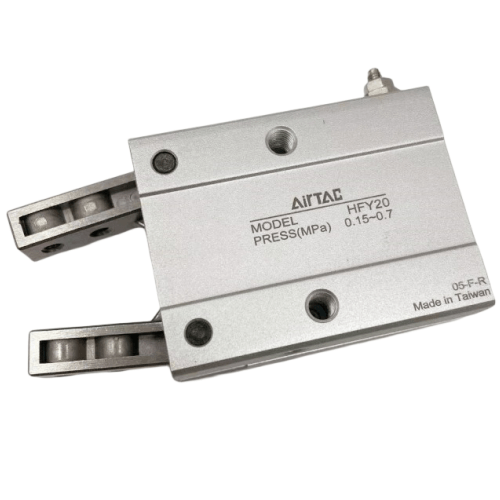

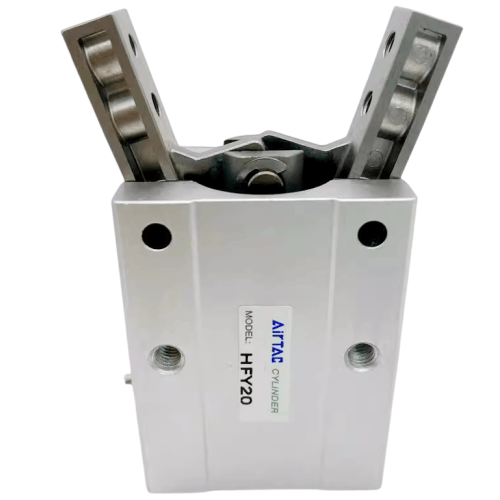

Airtac HFTY Y-Type Pneumatic Gripper HFTY16
2、Integrated adjustable flow control valve facilitates precise adjustment of jaw opening/closing speed;
3、Optimized jaw stroke design ensures broad application coverage;
4、High positioning accuracy enables precise and reliable workpiece handling;
5、Multiple mounting configurations enhance adaptability to diverse application scenarios;
6、Standard integrated magnets simplify sensor installation across all models.
Category: Rodless Gripper Cylinders , Brand: AIRTC , Series: HFTY
AirTAC HFTY Series Y-Type Pneumatic Gripper HFTY16 Technical Details
- Model: HFTY16-(X) (X=Stroke length option: 8/10/15)
- Type: Double-acting parallel gripper with T-slot guide
- Gripping force: 40N@0.5MPa / 48N@0.6MPa (adjustable via pressure)
- Repeat accuracy: ±0.02mm
- Stroke per jaw: 8mm (standard), 10mm/15mm (optional)
- Weight: 250g ±5% (without accessories)
- Dimensions: 85mm(L) × 43mm(W) × 28mm(H) (minimum closed state)
- Material: Aluminum alloy body (hard anodized) + NBR seals
- Operating pressure: 0.1-0.7 MPa
- Temperature range: -20℃ to 80℃ (NBR seals)
- Air port size: M5x0.8 (1/8" NPT adaptor available)
- Max gripping speed: 100mm/s (air pressure dependent)
- Mounting pattern: 2x M4 threaded holes (6mm depth) on base
High-precision parallel gripper featuring symmetrical Y-shaped dual piston mechanism for balanced clamping force. The hardened guide rails and low-friction seals enable smooth operation with 500,000+ cycle durability. Integrated air vents prevent particle accumulation in critical motion areas.
- PCB component insertion machines
- Automotive part transfer systems
- Pharmaceutical blister packaging lines
- 3C product assembly automation
- Precision bearing handling systems
Operation guidance:
For optimal performance, maintain air supply dew point below 3℃ and install
a 5μm filter. Lubricate sliding surfaces with ISO VG32 turbine oil monthly
in high-cycle applications. Avoid side impact loads exceeding 15N.
- Use AS420 fittings for compact installations
- Pair with MHFW-16D magnetic sensors for position feedback
- Compatible with AGP-06 modular brackets
| Property | Property Value |
|---|---|
| sku | HFTY16 |
| Port Size | M5×0.8 |
| Maximum Gripping Length | <40mm> |
| Cushion Type | Bumper Pad |
| Bore Diameter | 16mm |
