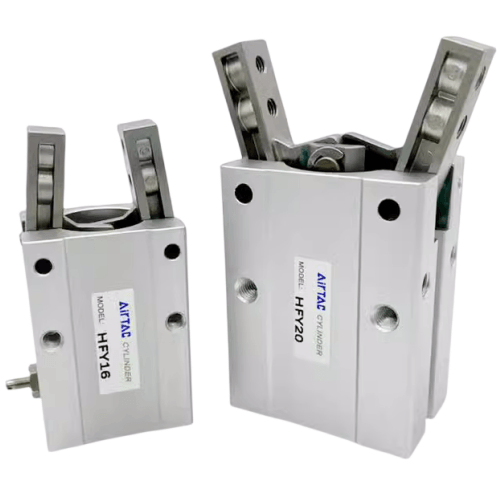

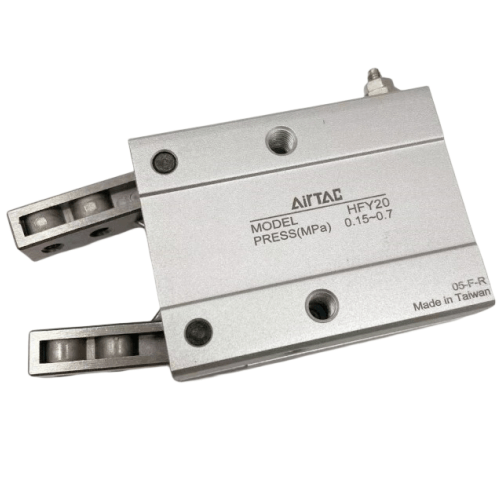

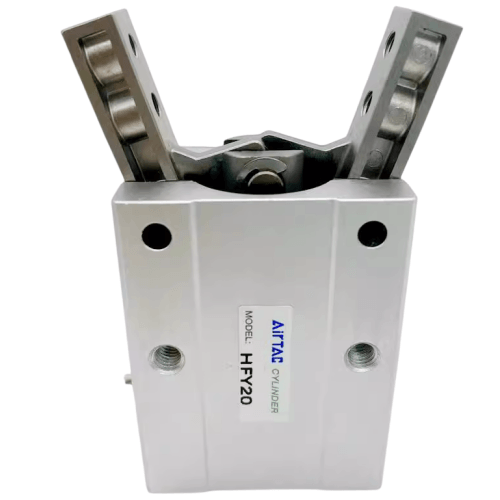

Airtac HFTY Y-Type Pneumatic Gripper HFTY20
2、Integrated adjustable flow control valve facilitates precise adjustment of jaw opening/closing speed;
3、Optimized jaw stroke design ensures broad application coverage;
4、High positioning accuracy enables precise and reliable workpiece handling;
5、Multiple mounting configurations enhance adaptability to diverse application scenarios;
6、Standard integrated magnets simplify sensor installation across all models.
Category: Rodless Gripper Cylinders , Brand: AIRTC , Series: HFTY
AirTAC HFTY Series Y-Type Pneumatic Finger HFTY20 Technical Specifications
- Model: HFTY20-Y
- Type: Double-acting parallel gripper (Y-type)
- Bore size: Ø20mm
- Operating pressure: 0.1-0.7 MPa
- Stroke per jaw: 0-6mm (adjustable)
- Gripping force: 31.4N @0.5MPa
- Port size: M5×0.8 (dual Rc1/8 optional)
- Temperature range: -10℃ to 70℃
- Body material: Anodized aluminum alloy
- Seal material: NBR (HNBR available for high-temp)
- Slide mechanism: Precision linear ball bearings
- Repeat accuracy: ±0.01mm
- Max speed: 500mm/s
- Mounting: 2×M4 threaded holes (base) + through holes
- Weight: 0.35kg (excluding accessories)
- Dimensions: 80mm(L) × 40mm(W) × 40mm(H)
High-precision parallel gripper with self-aligning jaw seats, featuring wear-compensation mechanism for consistent gripping force through 10 million cycles. Optimized flow channels enable 30% faster response than conventional models. Anti-corrosion coating protects against coolants and industrial washdowns.
- PCB component insertion machines
- Pharmaceutical blister packaging
- Micro-motor shaft handling
- Optical lens assembly stations
- Battery cell stacking systems
Operation note:
For precision tasks, maintain air pressure stability (±0.02MPa) and use
dedicated jaw tooling kits. Lubricate guide shafts every
50,000 cycles using ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | HFTY20 |
| Port Size | M5×0.8 |
| Maximum Gripping Length | 60mm |
| Cushion Type | Bumper Pad |
| Bore Diameter | <20mm> |
