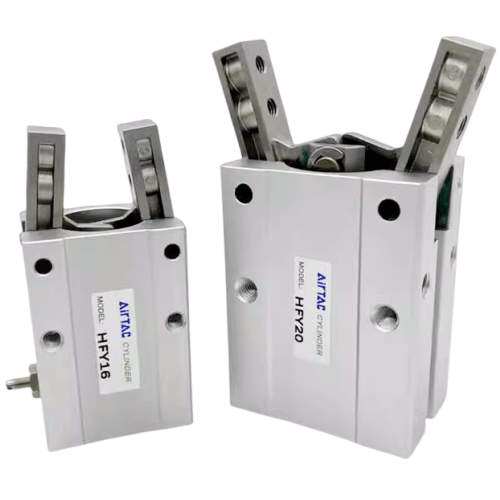

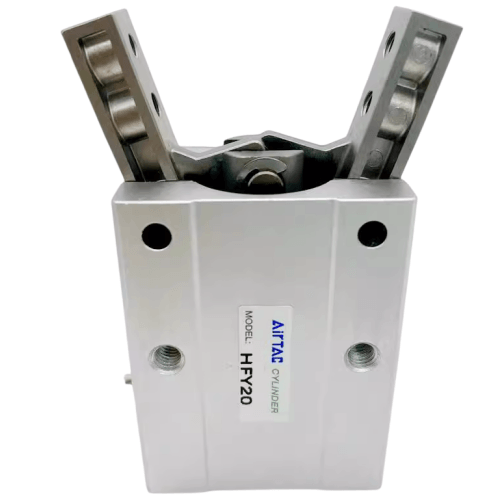

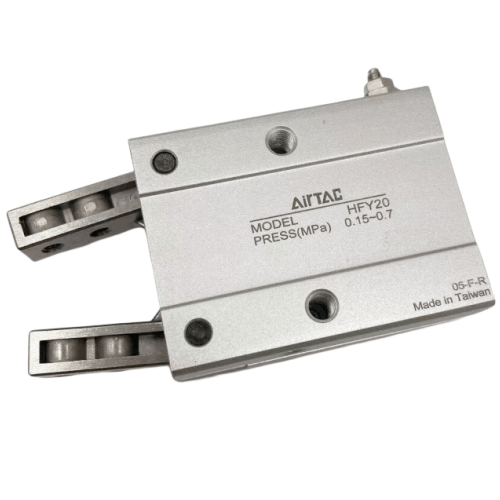

Airtac HFTY Y-Type Pneumatic Gripper HFTY32
2、Integrated adjustable flow control valve facilitates precise adjustment of jaw opening/closing speed;
3、Optimized jaw stroke design ensures broad application coverage;
4、High positioning accuracy enables precise and reliable workpiece handling;
5、Multiple mounting configurations enhance adaptability to diverse application scenarios;
6、Standard integrated magnets simplify sensor installation across all models.
Category: Rodless Gripper Cylinders , Brand: AIRTC , Series: HFTY
AirTAC HFTY Series Y-Type Pneumatic Gripper HFTY32 Specifications
- Model: HFTY32
- Type: Y-shaped parallel gripper (dual-acting)
- Gripping force range: 3-35N (adjustable via air pressure)
- Operating pressure: 0.1-0.7 MPa
- Stroke per jaw: 4mm standard
- Repeat accuracy: ±0.015mm
- Material: Aluminum alloy body with hardened steel guide rods
- Surface treatment: Anodized finish (natural color)
- Seal material: NBR rubber (FDA-compliant option available)
- Weight: 420g ±5%
- Dimensions: 80mm(L) × 45mm(W) × 32mm(H)
- Mounting pattern: 32mm inter-hole spacing (M4 threaded holes)
- Temperature range: -10℃ to 80℃
- Air consumption: 18cm³/stroke (at 0.5MPa)
- Response time: 50ms (open/close cycle)
- Protection rating: IP40 (dust protected)
Precision parallel gripper with self-aligning guide mechanism, featuring wear-compensating design for consistent performance in high-cycle applications. The Y-shaped configuration enables compact installation in space-constrained automation setups. Optimized for cleanroom-compatible operations with optional low-particle emission seals.
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Micro-motor assembly systems
- Precision optical lens handling
- Battery cell sorting equipment
- Watch movement manufacturing
Operation tip:
For maximum grip stability, maintain air pressure ≥0.3MPa and
install shock absorbers when gripping fragile materials.
Lubricate guide rods monthly with ISO VG32 hydraulic oil.
- Multiple jaw face materials: Rubber, polyurethane, or carbide-coated
- Optional magnetic sensor slots for position feedback
- Reverse mounting capability for inverted installations
- High-temperature variant available (up to 120℃)
| Property | Property Value |
|---|---|
| sku | HFTY32 |
| Port Size | M5×0.8 |
| Maximum Gripping Length | 85mm |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
