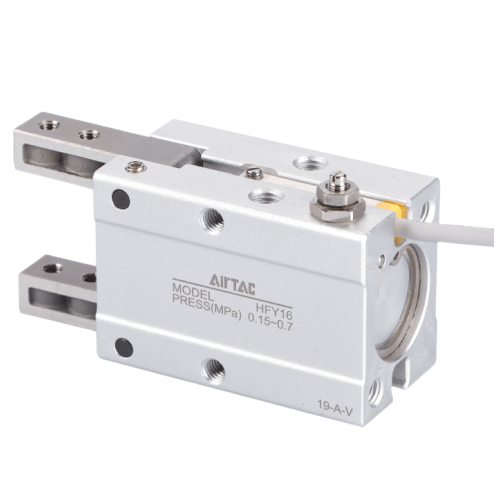

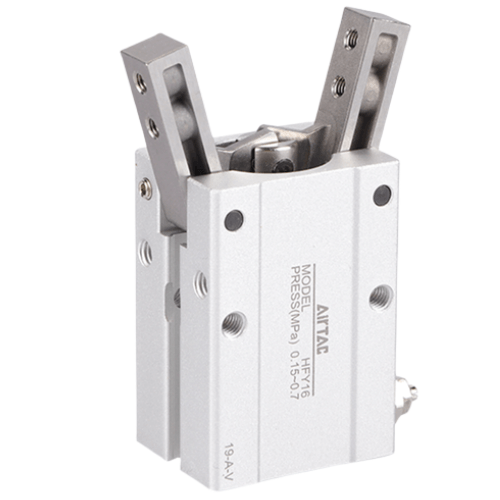

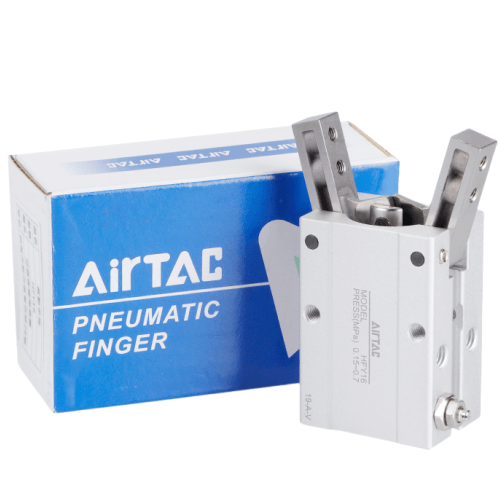

Airtac HFY Y-Type Pneumatic Gripper HFY32
2、Integrated adjustable throttle valve enables precise control of jaw opening/closing speed;
3、Optimized clamping angle design ensures wide application range across industrial scenarios;
4、High-precision positioning mechanism guarantees accurate and reliable workpiece gripping;
5、Multiple mounting configurations adapt to diverse installation requirements;
6、Standard integrated magnets across all models for enhanced proximity sensor compatibility.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFY
AirTAC HFY Y-Type Pneumatic Gripper HFY32 Specifications
- Model: HFY32 (Standard Y-Type Parallel Gripper)
- Gripping force: 32N at 0.5MPa (adjustable via pressure)
- Operating pressure: 0.1-0.7 MPa
- Action type: Double-acting (air pressure required for both opening/closing)
- Stroke per jaw: 4mm (Total parallel opening: 8mm)
- Repeat accuracy: ±0.02mm
- Port size: M5x0.8 (Standard) / NPT1/8 optional
- Body material: Anodized aluminum alloy (A6063)
- Seal material: NBR (Nitrile rubber) / Optional FKM
- Temperature range: -10℃ to 80℃ (NBR) / -10℃ to 150℃ (FKM)
- Weight: 280g ±5g (Without accessories)
- Dimensions: 62mm(L) × 40mm(W) × 34mm(H) (Main body only)
- Mounting pattern: 32mm × 32mm square (ISO 9409-1 compliant)
- Air consumption: 5.5cm³/stroke (Per jaw cylinder)
- Protection rating: IP67 (Dust/water resistant)
- Lubrication: Pre-lubricated (Use ISO VG32 turbine oil if maintained)
High-precision parallel gripper with dual piston wedge mechanism for symmetrical force distribution. Features hard-anodized surface treatment for wear resistance and optional cushioning adjustment screws for shock absorption. Compatible with vacuum pads and custom tooling via 4x M4 threaded holes on each jaw face (max 5mm protrusion).
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Automotive fuel injector assembly
- Precision bearing handling systems
- 3C product testing equipment
- Glass substrate transfer robots
Installation tips:
Maintain 0.5-1mm clearance between jaws and workpiece during initial setup.
Use 40μm filtered dry air with 1-3 drops of oil per m³ (ISO 8573-1 class 4-4-3).
For vertical mounting, install air exhaust mufflers upward to prevent debris entry.
| Property | Property Value |
|---|---|
| sku | HFY32 |
| Port Size | M5×0.8 |
| Maximum Gripping Length | 85mm |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
