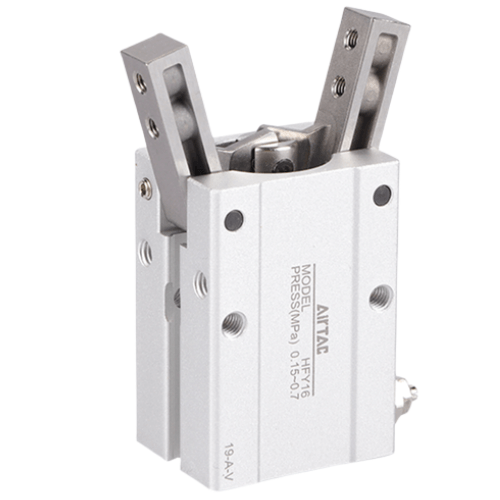

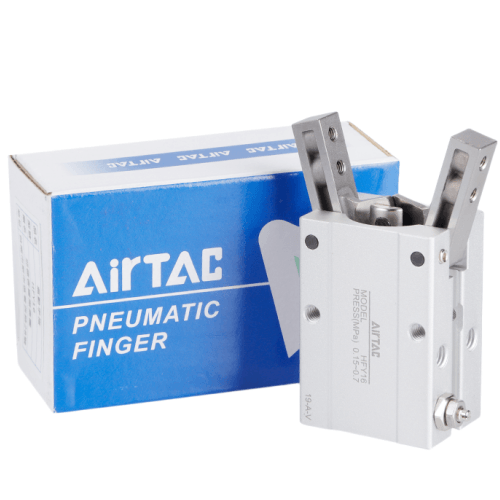

Airtac HFY Y-Type Pneumatic Gripper HFY6
2、Integrated adjustable throttle valve enables precise control of jaw opening/closing speed;
3、Optimized clamping angle design ensures wide application range across industrial scenarios;
4、High-precision positioning mechanism guarantees accurate and reliable workpiece gripping;
5、Multiple mounting configurations adapt to diverse installation requirements;
6、Standard integrated magnets across all models for enhanced proximity sensor compatibility.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFY
AirTAC HFY Y-Series Pneumatic Gripper HFY6 Technical Specifications
- Model: HFY6 (Standard Y-type parallel gripper)
- Gripping force: 4.5-29.4N adjustable (0.15MPa pressure)
- Operating pressure: 0.05-0.7 MPa
- Stroke per jaw: 6mm (Standard), customizable 3-12mm options
- Port size: M5x0.8 (Dual Rc1/8 optional)
- Repeat accuracy: ±0.02mm
- Material: Anodized aluminum body, NBR seals
- Temperature range: -10℃ to 80℃ (Extended to 120℃ with FKM seals)
- Protection rating: IP54 (IP67 with optional boot)
- Mounting pattern: 25mm inter-hole distance (ISO 9409-1 compatible)
- Weight: 0.28kg (Bare gripper), 0.33kg (With accessories)
- Dimensions: 78mm(L) × 34mm(W) × 34mm(H) (Closed state)
- Actuation type: Double-acting (4 ports)
- Max cycling rate: 3 cycles/sec (With cushioning engaged)
- Shock resistance: 15G acceleration tolerance
The HFY6 precision gripper features twin piston-driven jaws with integrated shock absorbers and adjustable mechanical stops. Its compact Y-configuration enables 180° symmetrical gripping with zero backlash, achieving 50% higher positional accuracy than standard grippers. The hardened guide rails and dual O-ring piston sealing ensure 2 million+ cycles maintenance-free operation.
- PCB component insertion machines (ESD-safe version available)
- Pharmaceutical blister packaging line pick-and-place
- Automotive fuel injector nozzle assembly
- Silicon wafer handling in cleanroom environments
- 3C product testing fixture positioning
Installation protocol:
Use M3x6mm SHCS for mounting (18N·m torque max). For vertical installations,
install air exhaust filters to prevent particle ingress. Lubricate with ISO VG32
turbine oil if used in high-cycle (>1Hz) applications.
- Non-magnetic variants for sensor-sensitive environments
- High-temperature seals for sterilization processes
- Precision-ground jaws with <5μm surface roughness

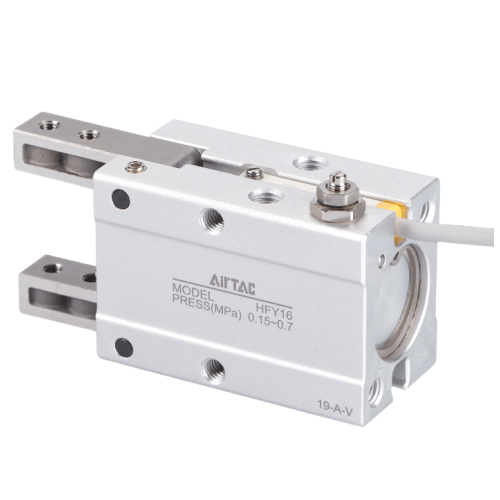

- Integrated reed switch mounting slots
| Property | Property Value |
|---|---|
| sku | HFY6 |
| Port Size | M3×0.5 |
| Maximum Gripping Length | 30mm |
| Cushion Type | Bumper Pad |
| Bore Diameter | <6mm> |
