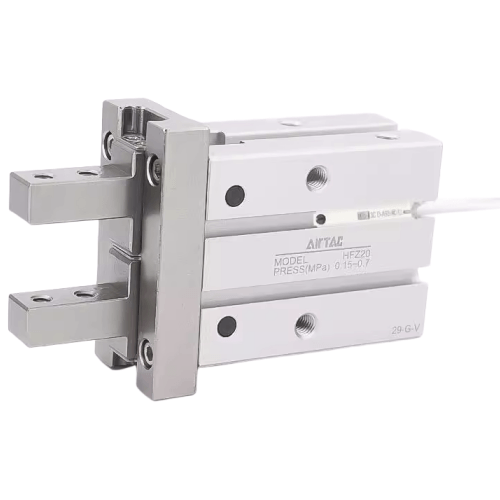

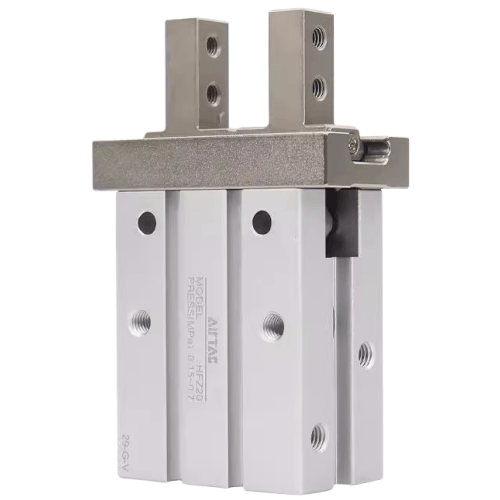

Airtac HFZ Parallel Type Pneumatic Gripper HFZ20
$141.87
Regular price
$149.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFZ20
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Features an integrated linear guide design for high rigidity and precision;
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
Installation tip:
Use alignment jigs during mounting to ensure parallel orientation.
Lubricate guide rods monthly with ISO VG32 turbine oil.
Maximum lateral load capacity: 15N (perpendicular to jaw motion).
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
AirTAC HFZ20 Parallel Pneumatic Gripper Technical Details
- Model: HFZ20 (Parallel Type)
- Structure: Double-acting cylinder driven parallel jaw
- Gripping force: 45N @0.5MPa / 54N @0.6MPa
- Stroke options: 10mm, 20mm, 30mm (standard variants)
- Repeat accuracy: ±0.05mm
- Operating pressure: 0.1-0.7 MPa
- Port size: M5x0.8 (standard), G1/8 optional
- Material: Aluminum alloy body, stainless steel guide rails
- Seals: NBR (standard), optional FKM for high temp
- Temperature range: -10℃ to 80℃ (NBR seals)
- Weight: 0.25kg (bare gripper without accessories)
- Dimensions: 80mm(L) × 50mm(W) × 40mm(H) (closed position)
- Max operating speed: 200mm/s
- Mounting pattern: 25mm interaxis hole spacing
- Protection rating: IP65 (dust/water jet resistant)
High-precision parallel gripper with dual guide rods for minimal angular deviation during operation. Features adjustable gripping force via air pressure regulation and hardened steel wear plates for extended cycle life. Compatible with ISO 9400-1 mounting standards.
Common Applications:
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Automotive fuel injector assembly
- 3C product testing equipment
- Precision bearing handling systems
Installation tip:
Use alignment jigs during mounting to ensure parallel orientation.
Lubricate guide rods monthly with ISO VG32 turbine oil.
Maximum lateral load capacity: 15N (perpendicular to jaw motion).
| Property | Property Value |
|---|---|
| sku | HFZ20 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
| Stroke | <10mm> |
