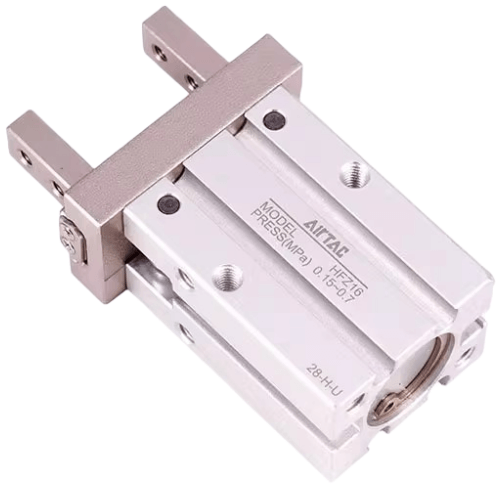

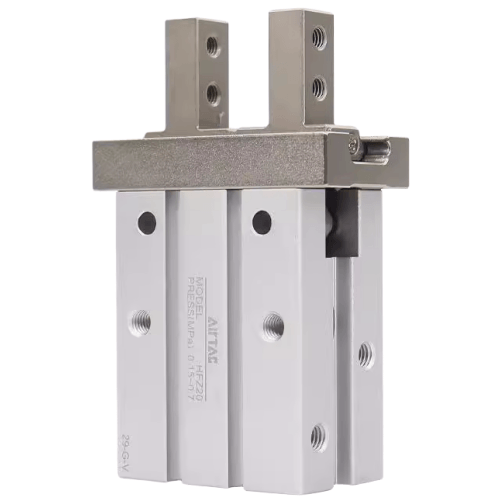

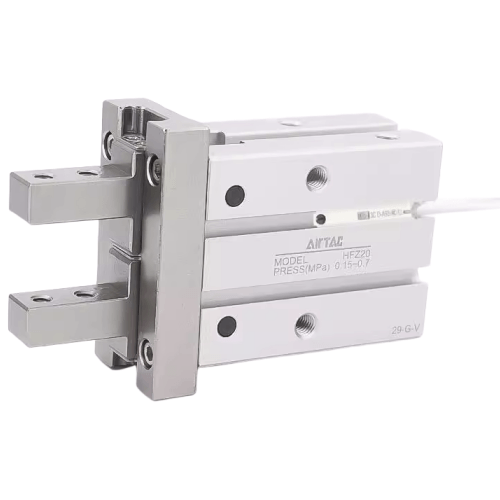

Airtac HFZ Parallel Type Pneumatic Gripper HFZ32
$244.23
Regular price
$251.73
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFZ32
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Features an integrated linear guide design for high rigidity and precision;
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
Installation tip:
For vertical mounting applications, install a drip-proof cover (accessory HFZ-ZM)
to prevent particulate ingress. Lubricate guide rods monthly with ISO VG32
turbine oil in high-cycle operations (>500k cycles/month).
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
AirTAC HFZ Series Parallel Pneumatic Gripper HFZ32 Technical Specifications
- Model: HFZ32
- Structure type: Parallel twin-arm (double-acting)
- Gripping force: 15-60N (adjustable via pressure)
- Stroke per jaw: 0-8mm (16mm total opening)
- Operating pressure: 0.1-0.7 MPa
- Port size: M5x0.8 (standard), G1/8 optional
- Material: Aluminum alloy body, CRMo steel guide rods
- Surface treatment: Hard anodized (body), chrome plating (rods)
- Operating temperature: -10℃ to 80℃
- Repeat accuracy: ±0.02mm
- Weight: 0.43kg (bare gripper), 0.58kg (with accessories
- Dimensions: 76mm(L) × 42mm(W) × 32mm(H)
- Mounting pattern: 32mm inter-hole spacing (ISO 9409-1 compatible)
- Seal material: NBR standard (FKM available for high temp)
- Protection class: IP54 (standard), IP67 optional
- Max cycling rate: 3 cycles/sec (with 0.5MPa supply)
High-precision parallel gripper featuring dual piston drive mechanism with crossed roller bearings for smooth linear motion. Incorporates wear-compensation adjustment screws and integrated T-slot mounting grooves. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
Industrial Applications:
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Automotive fuel injector assembly
- Battery cell handling in energy storage systems
- Precision bearing sorting and orientation
- 3C product testing equipment (mobile phone components)
Installation tip:
For vertical mounting applications, install a drip-proof cover (accessory HFZ-ZM)
to prevent particulate ingress. Lubricate guide rods monthly with ISO VG32
turbine oil in high-cycle operations (>500k cycles/month).
| Property | Property Value |
|---|---|
| sku | HFZ32 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <32 mm> |
| Stroke | 22mm |
