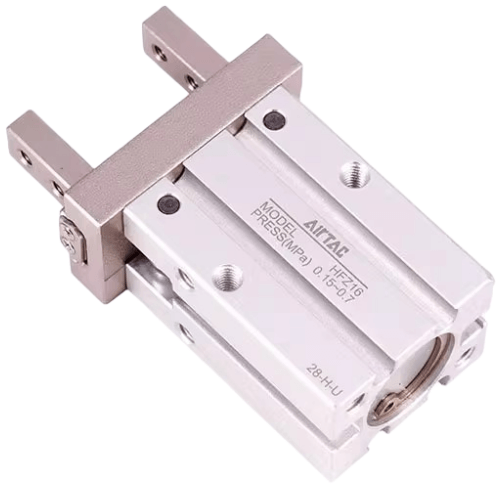

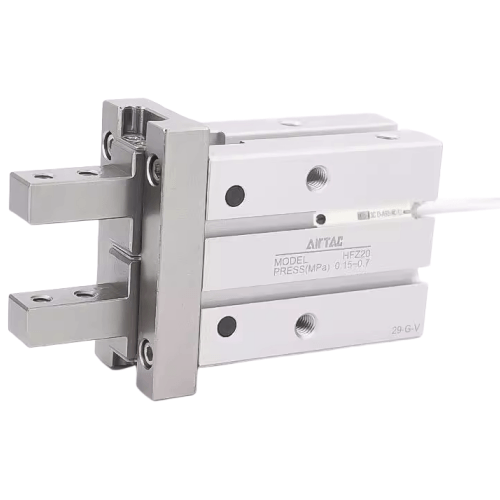

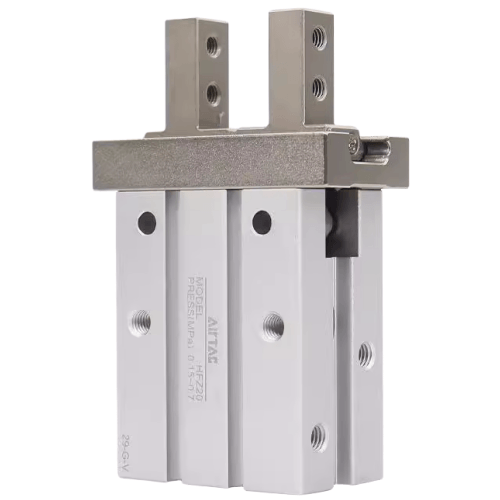

Airtac HFZ Parallel Type Pneumatic Gripper HFZ40
$281.45
Regular price
$288.95
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFZ40
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Features an integrated linear guide design for high rigidity and precision;
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
Operation tip:
For delicate objects, use 0.15-0.3 MPa pressure with speed control valves.
Lubricate guide rails every 500,000 cycles using ISO VG32 hydraulic oil.
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
AirTAC HFZ40 Parallel Pneumatic Gripper Specifications
- Model: HFZ40 (Parallel Type)
- Gripping Force: 40N (adjustable via air pressure)
- Stroke per Jaw: 0-12mm (total opening 24mm)
- Operating Pressure: 0.1-0.7 MPa
- Air Inlet: M5 (standard) / NPT1/8 (optional)
- Repeat Accuracy: ±0.02mm
- Maximum Speed: 100mm/s
- Ambient Temperature: -10℃ to 80℃
- Material: Aluminum alloy body, NBR seals
- Weight: 320g ±5g
- Dimensions: 90mm(L) × 42mm(W) × 34mm(H)
- Mounting Pattern: 2×M4 threaded holes (8mm spacing)
- Air Consumption: 6.5cm³/stroke (single acting)
- Protection Class: IP54 (standard)
High-precision parallel gripper with self-aligning mechanism, featuring dual piston design for symmetrical force distribution. The hardened guide rails ensure smooth operation over 10 million cycles. Compatible with vacuum cups and custom tooling attachments via front mounting slots.
Typical Applications:
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Automotive fuel injector assembly
- Battery cell handling in cleanrooms
- 3C product testing equipment
Operation tip:
For delicate objects, use 0.15-0.3 MPa pressure with speed control valves.
Lubricate guide rails every 500,000 cycles using ISO VG32 hydraulic oil.
Optional Accessories:
- Magnetic sensor kit (HFZ-MD40)
- Anti-vibration rubber pads
- Stainless steel jaw plates
- Low-friction PTFE seals (-LS version)
| Property | Property Value |
|---|---|
| sku | HFZ40 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <40mm> |
| Stroke | 30mm |
