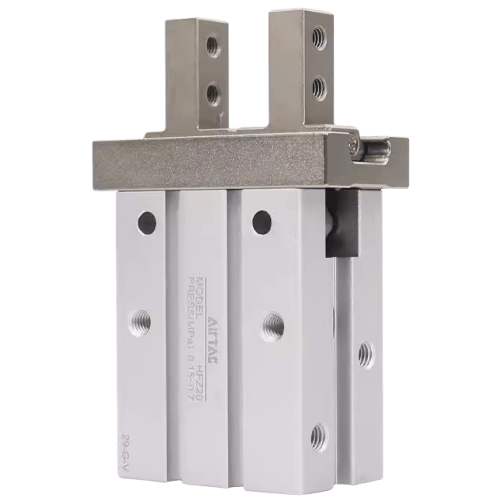

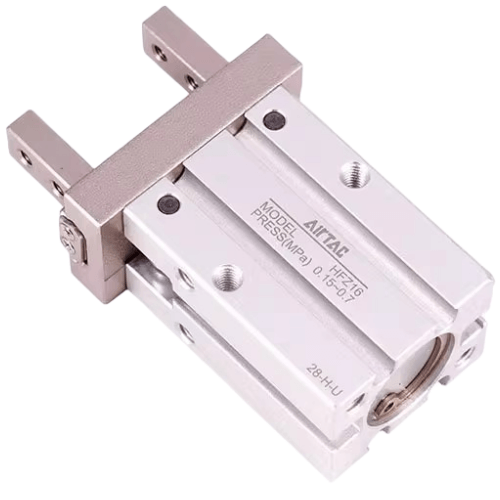

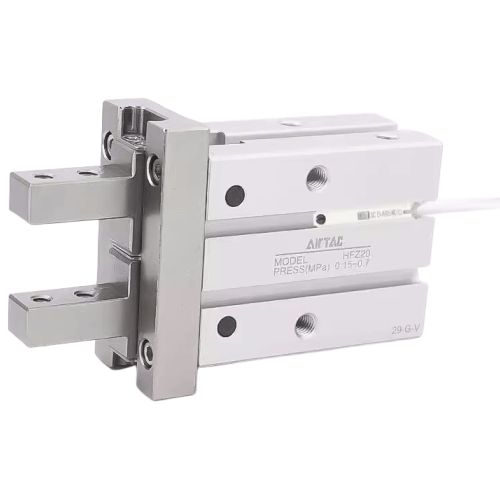

Airtac HFZ Parallel Type Pneumatic Gripper HFZ6N
$123.26
Regular price
$130.76
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFZ6N
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Features an integrated linear guide design for high rigidity and precision;
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
Installation tip:
Use vibration-resistant thread locker on mounting screws. For vertical installations,
apply 0.02-0.03MPa minimum pressure to prevent seal drying. Lubricate monthly with
ISO VG32 turbine oil if used in continuous operation.
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
AirTAC HFZ6N Parallel Pneumatic Gripper Technical Details
- Model Series: HFZ6N (Narrow Type)
- Structure: Double-acting parallel jaw
- Bore Size: Ø6mm
- Action Type: Bidirectional gripping
- Operating Pressure: 0.1-0.7 MPa
- Gripping Force: 5.8N @ 0.4MPa
- Stroke per Jaw: 2mm (Total opening 4mm)
- Port Size: M5x0.8 (Dual ports for simultaneous actuation)
- Repeat Accuracy: ±0.02mm
- Operating Temperature: -10℃ to 70℃
- Material:
- Main Body: Anodized aluminum alloy
- Jaws: Hardened stainless steel
- Seals: NBR (Nitrile rubber)
- Weight: 72g ±2g
- Dimensions: 45mm(L) × 24mm(W) × 16.5mm(H)
- Mounting: 2x M3 threaded holes (3mm depth)
- ISO Certification: 15552 compliant
Ultra-compact parallel gripper with precision ground guide rods for micron-level repeatability. Features dual air ports for rapid response (avg. cycle time 0.15s) and integrated debris-resistant design. Optional jaw inserts available for fragile materials.
Industrial Applications:
- PCB component placement robots
- Watch movement assembly systems
- Pharmaceutical blister packaging
- Micro-drive mechanism handling
- Optical lens manufacturing
Installation tip:
Use vibration-resistant thread locker on mounting screws. For vertical installations,
apply 0.02-0.03MPa minimum pressure to prevent seal drying. Lubricate monthly with
ISO VG32 turbine oil if used in continuous operation.
Recommended Pairings:
- AirTAC MHL2-10D mini pressure regulator
- APM-06N-02 compact air filter
- HFZW6-3A anti-rotation jaw accessories
| Property | Property Value |
|---|---|
| sku | HFZ6N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <6mm> |
| Stroke | <3mm> |
