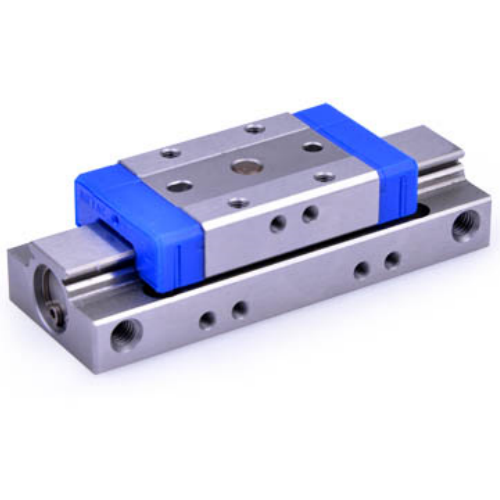

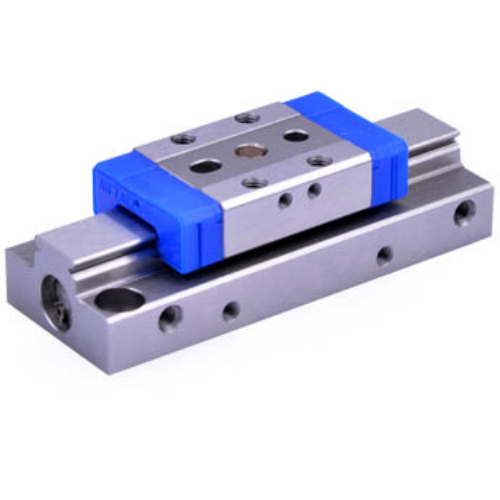

Airtac HGS Micro Precision Slide Table Cylinder HGS8X10SJ
2、High-strength alloy steel quick-connect pins ensure superior wear resistance and extended service life.
3、Optional stroke adjustment mechanism compatible with direct replacement of hydraulic actuators.
4、Precision-ground rails deliver exceptional linear accuracy (±0.03mm) and non-rotation stability.
5、Comprehensive series configuration with high-strength optional accessories for customized solutions.
6、Integrated positioning holes and adjustment grooves optimize installation precision while maintaining positioning consistency during repeated disassembly.
（For custom stroke requirements exceeding standard specifications, please consult our engineering team）
Category: Precision Slide Cylinder | Brand: AIRTAC | Series: HGS
AirTAC HGS Micro Precision Slide Cylinder HGS8X10SJ Specifications
- Model: HGS8X10SJ
- Type: Compact guided cylinder with integrated slide mechanism
- Bore size: 8mm
- Stroke: 10mm (customizable 5-50mm)
- Operating pressure: 0.05-0.7 MPa
- Speed range: 50-500mm/s
- Cushion type: Adjustable rubber bumper
- Mounting style: Dual-axis base mounting
- Port size: M3x0.5 (dual ports)
- Material: Aluminum alloy body, stainless steel guide rods
- Temperature range: -10℃ to 80℃
- Repeat positioning accuracy: ±0.01mm
- Max lateral load: 3N
- Weight: 0.25kg (excluding accessories)
- Dimensions: 80mm(L) × 20mm(W) × 20mm(H)
Ultra-compact linear actuator combining pneumatic power with precision guidance, featuring dual stainless steel shafts for exceptional moment resistance. Integrated T-slot design allows direct mounting of sensors or tooling plates. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3.4.2 air quality.
- Semiconductor wafer handling systems
- Micro-dispensing robots in PCB assembly
- Optical lens positioning stages
- Laboratory sample sorting mechanisms
- Miniature pick-and-place units
Installation note:
Maintain coaxial alignment during assembly. Use support brackets when stroke exceeds 30mm.
Lubricate guide rods monthly with ISO VG32 hydraulic oil (0.1ml per rod).
| Property | Property Value |
|---|---|
| sku | HGS8X10SJ |
| Bore Diameter | <8mm> |
| Stroke | <10mm> |
