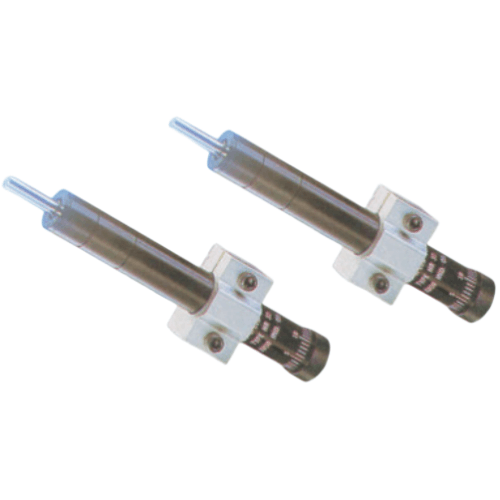

Airtac HR Hydraulic Speed Stabilizer HR-30
1. Mirror-finish polishing on inner bore surface and shaft ensures superior leak resistance.
2. Hydraulic fluid maintains consistent viscosity within specified operating temperature range;
3. Ensures stable and uniform oil discharge through inner cylinder with excellent speed stabilization performance. Shaft tip features specialized heat treatment for enhanced hardness.
Category: Hydraulic Shock Absorbers, Brand: AIRTAC, Series: HR
AirTAC HR-30 Hydraulic Speed Stabilizer Specifications
- Model: HR-30
- Type: Hydraulic adjustable speed controller with oil damping
- Operating pressure range: 0.05-0.8 MPa
- Hydraulic oil viscosity: ISO VG32 (recommended)
- Temperature range: -10℃ to 60℃
- Port size: PT1/4 (G1/4 optional)
- Mounting type: In-line flange mounting
- Seal material: NBR/FKM (optional)
- Adjustment range: 5-30 cycles/min (factory calibrated)
- Weight: 3.2 kg ±5%
- Dimensions: 150mm(L) × 80mm(W) × 60mm(H)
- Hysteresis: ≤±3% of set value
- Repeat accuracy: ≤±1.5%
- Oil capacity: 180±10ml
Precision-engineered hydraulic stabilizer featuring dual-chamber damping and temperature-compensated flow control. The HR-30 incorporates a wear-resistant aluminum alloy body with chrome-plated piston rod, designed for smooth velocity regulation in reciprocating systems. Includes visual stroke indicator and tamper-proof adjustment screw.
- Injection molding machine ejector speed control
- Press brake hydraulic cylinder synchronization
- Automated assembly line indexing mechanisms
- Hydraulic lift platform stabilization
- Die casting machine core pull systems
Installation protocol:
Mount within 1m of actuator cylinder, maintain oil level between Min-Max markers,
and perform 5-10 test cycles before final adjustment. Avoid mounting in vibration
zones exceeding 4.9m/s² acceleration.
| Property | Property Value |
|---|---|
| sku | HR-30 |
| Stroke | 30mm |
