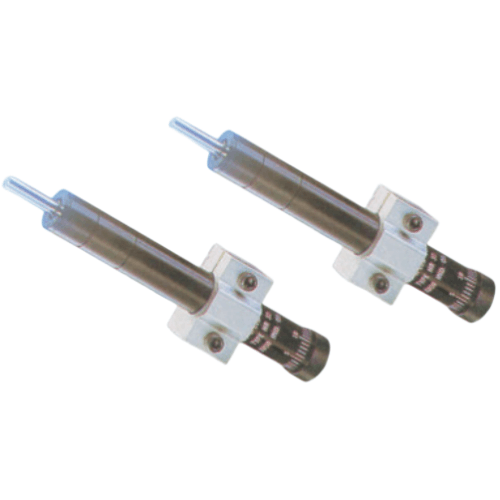

Airtac HR Hydraulic Speed Stabilizer HR-60
1. Mirror-finish polishing on inner bore surface and shaft ensures superior leak resistance.
2. Hydraulic fluid maintains consistent viscosity within specified operating temperature range;
3. Ensures stable and uniform oil discharge through inner cylinder with excellent speed stabilization performance. Shaft tip features specialized heat treatment for enhanced hardness.
Category: Hydraulic Shock Absorbers, Brand: AIRTAC, Series: HR
AirTAC HR-60 Hydraulic Speed Controller Specifications
- Model: HR-60
- Type: Oil hydraulic adjustable speed control (bidirectional)
- Operating pressure range: 0.1–1.0 MPa
- Oil capacity: 25±2 mL
- Temperature range: -10℃ to 60℃ (operating), -20℃ to 80℃ (storage)
- Mounting: Panel mount with M5×0.8 screws (horizontal/vertical)
- Port size: 1/8" BSPP (G1/8)
- Body material: Anodized aluminum alloy
- Seal material: HNBR rubber (high-grade hydrogenated nitrile)
- Weight: 480±10g (with oil)
- Dimensions: 98mm(L) × 52mm(W) × 48mm(H)
- Adjustment range: 0.5–10 seconds/stroke (factory calibrated)
- Viscosity requirement: ISO VG15 hydraulic oil (recommended)
Precision hydraulic damper designed for smooth motion control in pneumatic systems. Features dual-chamber design with micron-level filtration mesh (40μm) and thermal-compensated flow control. The HR-60 maintains consistent speed under variable loads through its patented labyrinth oil path design, reducing end-of-stroke impact by up to 72% compared to standard dampers.
- Precision cylinder speed stabilization in SMT pick-and-place machines
- Shock absorption for heavy-load actuators in die casting equipment
- Motion control in semiconductor wafer handling robots
- Packaging machine gripper synchronization systems
- Automated conveyor gate control with soft-stop function
Installation guidelines:
Always install vertically with arrow marking aligned to airflow direction.
Perform 5-10 test cycles before final adjustment. Use locking nut torque of 2.5–3.0 N·m.
Replace oil every 500,000 cycles or 12 months (whichever comes first).
| Property | Property Value |
|---|---|
| sku | HR-60 |
| Stroke | 60mm |
