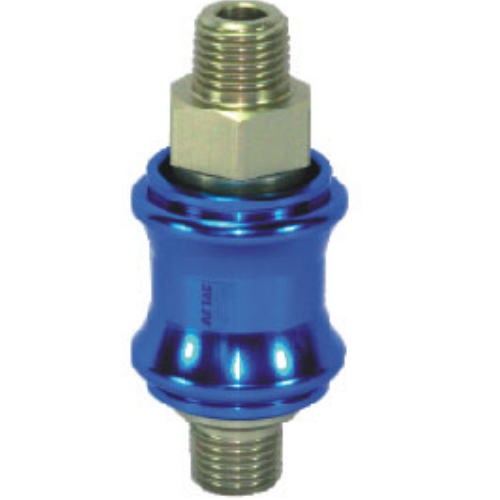

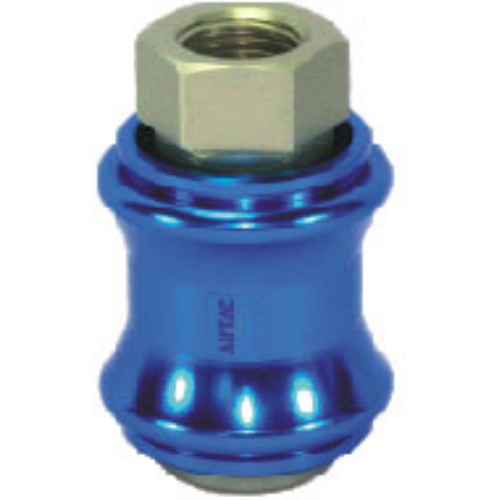

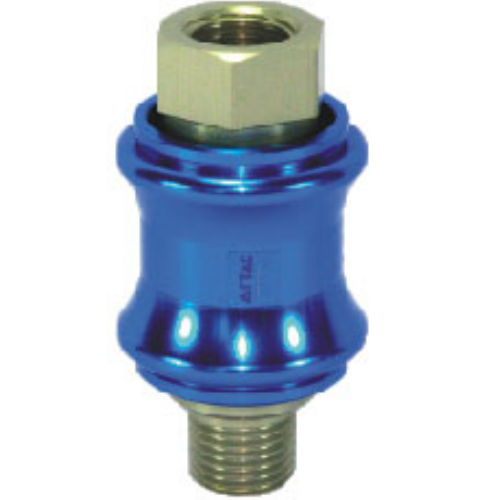

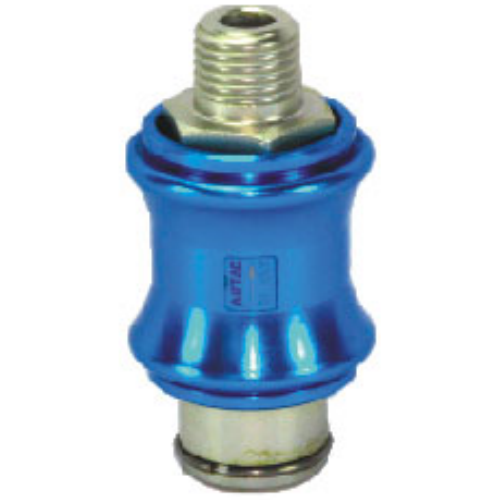

Airtac HSV Hand Slide Valve HSV06
2、Precision-engineered directional switching mechanism with smooth sliding operation and ergonomic tactile feedback;
3、Optimized flow path design ensuring maximum Cv value;
4、Hard-anodized spool surface and anodized aluminum alloy body provide exceptional wear resistance and permanent anti-corrosion properties.
Category: Manual Slide Valve , Brand: AIRTAC , Series: HSV
AirTAC HSV06 Manual Slide Valve Technical Details
- Model: HSV06
- Type: 3-position (All ports blocked in center), 5-way manual slide valve
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhausts)
- Port size: G1/8 (ISO228 standard) with NPT1/8 optional
- Operating pressure range: 0.2–1.0 MPa (29–145 psi)
- Max flow rate: 750 L/min (Cv=1.2 at 0.5 MPa)
- Valve body material: Anodized aluminum alloy (hard coat 25μm)
- Spool material: Stainless steel SUS304 with PTFE coating
- Seals: HNBR (Hydrogenated Nitrile) standard, FKM available for high temp
- Operating temperature: -10℃ to 80℃ (extended to 120℃ with FKM seals)
- Weight: 220g ±5% (without handle)
- Dimensions: 58mm(L) × 34mm(W) × 72mm(H)
- Mounting: Standard ISO 5599-1 interface pattern
- Actuation force: ≤15N lateral push force
- IP rating: IP54 (dust protected, splash resistant)
Mechanical manual override valve with positive center position lock, designed for emergency operation or system debugging in pneumatic circuits. Features wear-compensating spool design with 1 million cycle durability. The ergonomic toggle lever includes a safety lockout slot for padlock integration (max 6mm shackle). Compatible with ISO 8573-1:2010 Class 3 compressed air.
- Production line emergency stop systems
- Pneumatic press tooling mode selection
- Material handling equipment maintenance bypass
- Robotic arm manual positioning override
- Compressed air system troubleshooting stations
Installation protocol:
Apply thread sealant only on port threads (not on first two turns).
For vertical mounting, orient exhaust ports downward to prevent debris accumulation.
Lubricate spool monthly with ISO VG32-grade pneumatic oil.
| Property | Property Value |
|---|---|
| sku | HSV06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
