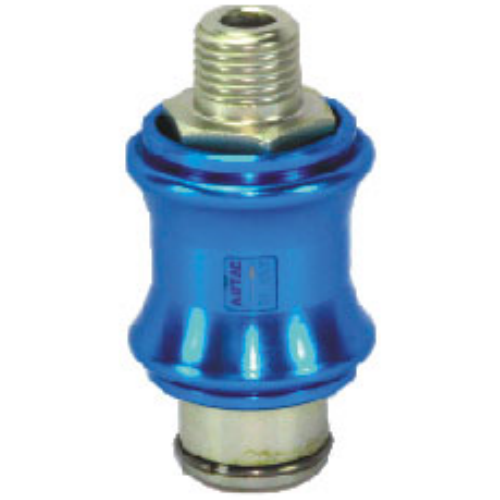

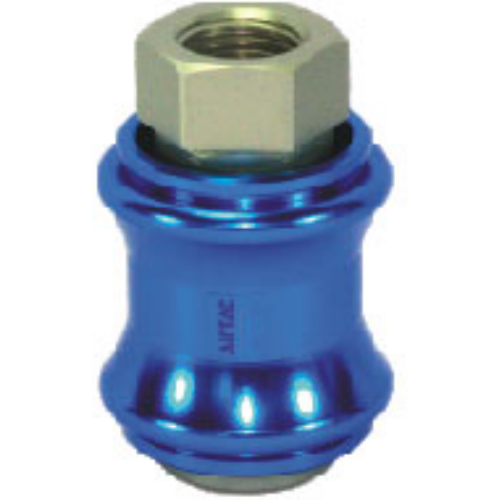

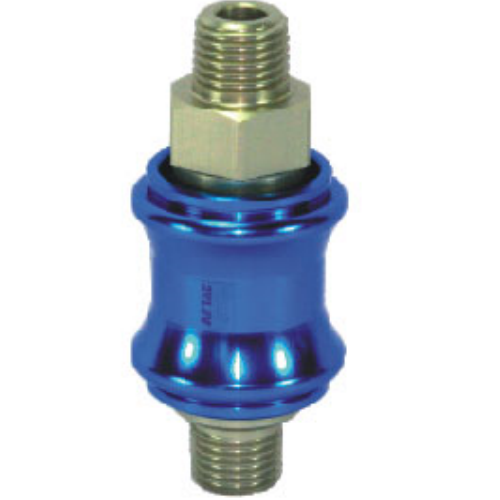

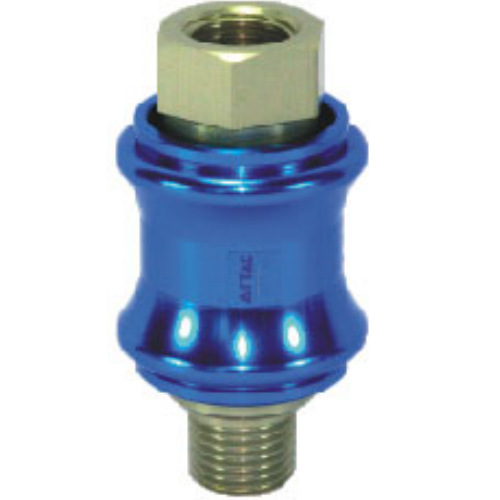

Airtac HSV Hand Slide Valve HSV10
2、Precision-engineered directional switching mechanism with smooth sliding operation and ergonomic tactile feedback;
3、Optimized flow path design ensuring maximum Cv value;
4、Hard-anodized spool surface and anodized aluminum alloy body provide exceptional wear resistance and permanent anti-corrosion properties.
Category: Manual Slide Valve , Brand: AIRTAC , Series: HSV
AirTAC HSV10 Manual Slide Valve Technical Details
- Model: HSV10
- Type: 2-position 5-way manual sliding valve
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Actuation type: Manual lever operation (90° rotation)
- Flow capacity: 500 NL/min (ANR)
- Weight: 320g ±5g
- Dimensions: 50mm(L) × 25mm(W) × 60mm(H)
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Port thread depth: 10mm (minimum engagement)
- Operating force: ≤3.5N at 0.6MPa
- Protection rating: IP65 (dust-tight & water jet resistant)
Robust manual override valve featuring positive center position locking and ergonomic lever design. The HSV10's hardened stainless steel shaft and dual wiper seals ensure smooth operation in high particulate environments. Includes integrated mounting slots for panel or DIN rail installation.
- Emergency override in automated production lines
- Pneumatic system maintenance bypass
- Mobile equipment manual control stations
- Plastic injection molding machine safety circuits
- Textile machinery air flow switching
Installation guidelines:
Lubricate sliding surfaces with ISO VG32 hydraulic oil before initial use.
Maintain minimum 15mm clearance around actuator lever for full stroke operation.
Use thread sealant on male ports (PT series) to prevent air leakage.
| Property | Property Value |
|---|---|
| sku | HSV10 |
| Position | 3-Port 2-Position |
| Port Size | PT3/8 |
