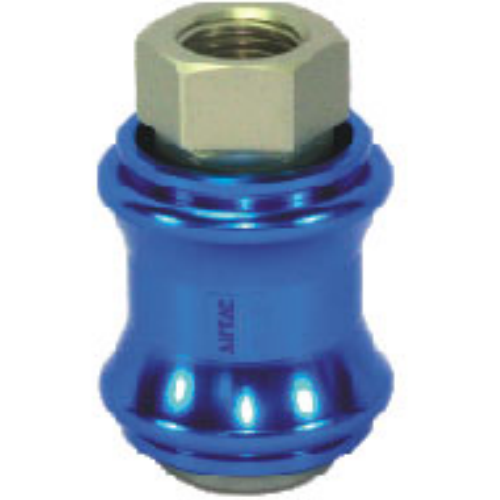

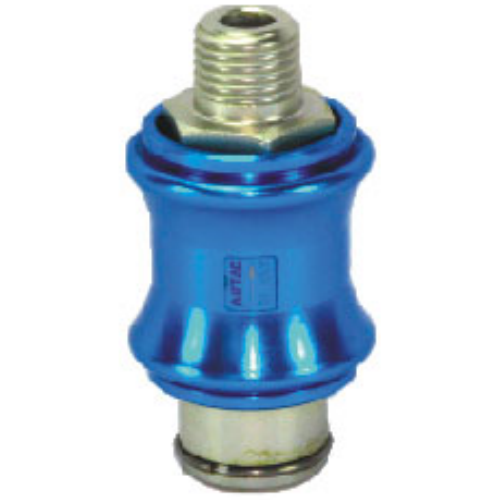

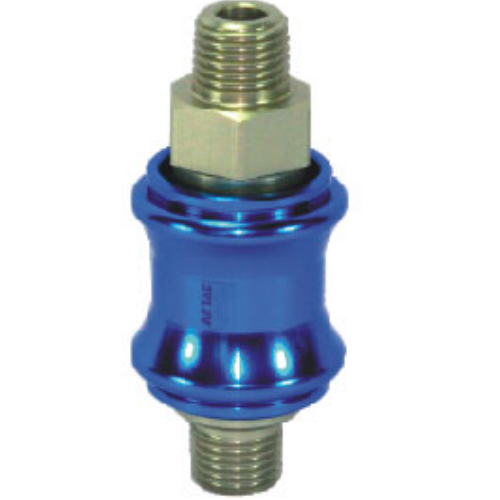

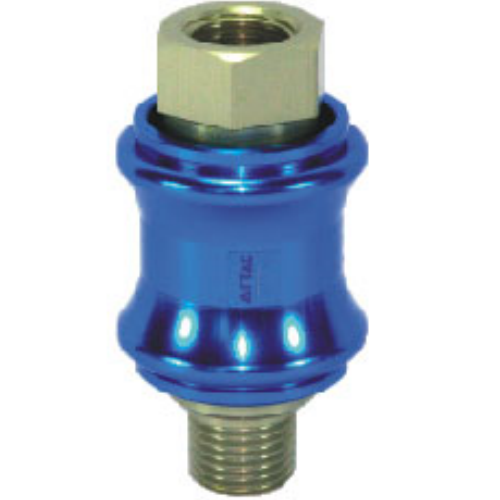

Airtac HSV Hand Slide Valve HSV10SS
2、Precision-engineered directional switching mechanism with smooth sliding operation and ergonomic tactile feedback;
3、Optimized flow path design ensuring maximum Cv value;
4、Hard-anodized spool surface and anodized aluminum alloy body provide exceptional wear resistance and permanent anti-corrosion properties.
Category: Manual Slide Valve , Brand: AIRTAC , Series: HSV
AirTAC HSV10SS Manual Slide Valve Technical Details
- Model: HSV10SS
- Type: 3-position (4-way) closed center manual slide valve
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure: 0.05–1.0 MPa (7-145 PSI)
- Flow capacity: 650 L/min @ 0.5 MPa (Cv≈1.8)
- Actuation type: Manual lever with detent positions
- Body material: Anodized aluminum alloy
- Seal material: HNBR (High nitrile rubber)
- Temperature range: -10℃ to 80℃ (14℉ to 176℉)
- Weight: 420g (0.93 lbs)
- Dimensions: 78mm(L) × 40mm(W) × 105mm(H) (3.07"L × 1.57"W × 4.13"H)
- Port thread depth: 12mm (0.47")
- Leakage rate: <3 bubbles/min under ISO 6952-1 test
- Cycle life: 1,000,000 operations minimum
Robust manual override valve with positive center shut-off, featuring tactile position feedback and corrosion-resistant construction. The HSV10SS's ergonomic lever design enables precise flow control in both directions, with a dust-resistant sliding mechanism requiring no external lubrication. Compatible with ISO 8573-1:2010 Class 3 compressed air.
- Emergency override in automated production lines
- Manual control of pneumatic clamps/jigs
- Safety lockout systems for maintenance
- Material handling equipment direction control
- Educational pneumatic training rigs
Installation guidelines:
Mount in accessible locations with ≥50mm clearance around lever.
Use PTFE tape on male threads only. Periodic function checks recommended
every 6 months in high-cycling applications.
| Property | Property Value |
|---|---|
| sku | HSV10SS |
| Position | 3-Port 2-Position |
| Port Size | PT3/8 |
