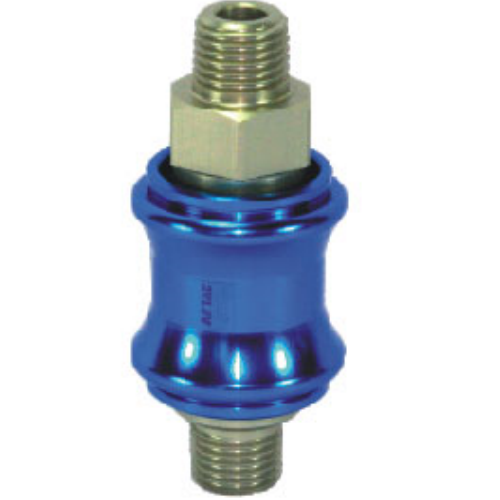

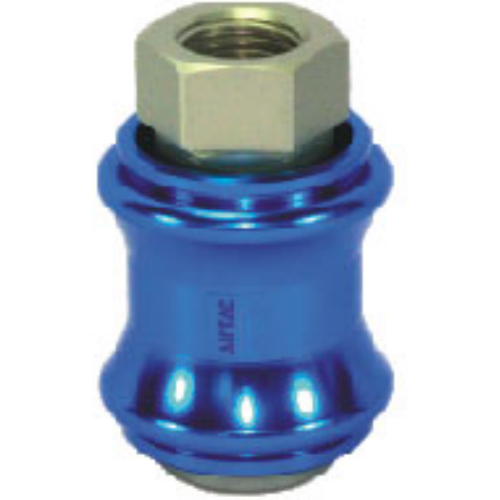

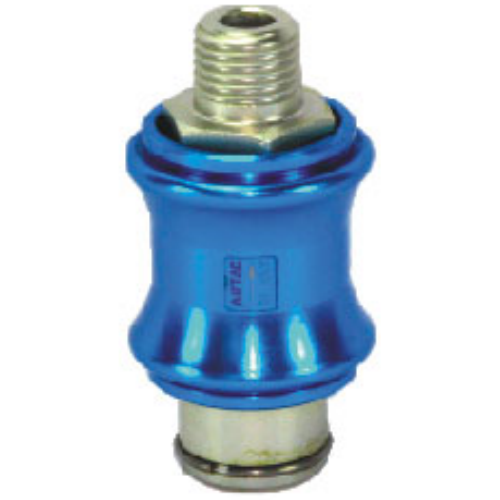

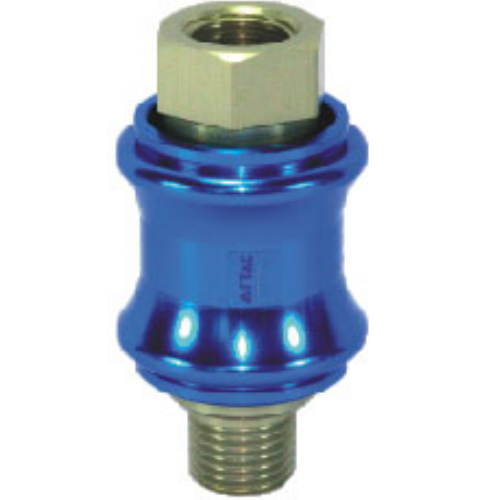

Airtac HSV Hand Slide Valve HSV20FF
2、Precision-engineered directional switching mechanism with smooth sliding operation and ergonomic tactile feedback;
3、Optimized flow path design ensuring maximum Cv value;
4、Hard-anodized spool surface and anodized aluminum alloy body provide exceptional wear resistance and permanent anti-corrosion properties.
Category: Manual Slide Valve , Brand: AIRTAC , Series: HSV
AirTAC HSV Manual Slide Valve HSV20FF Technical Details
- Model: HSV20FF (Industrial Series)
- Type: 3-position closed-center manual slide valve
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–1.0 MPa
- Operating medium: Filtered air (max 50μm particles)
- Manual operation: Ergonomic thumb lever with positive detent
- Weight: 300g ±5% (including mounting hardware)
- Dimensions: 60mm(L) × 40mm(W) × 80mm(H)
- Body material: Anodized aluminum alloy
- Seal material: HNBR rubber (-20℃ to 120℃)
- Flow capacity: 850 l/min (at 0.5MPa)
- Mounting: ISO 5599-1 standard interface
- Protection rating: IP67 (dust/water resistant)
Heavy-duty manual override valve featuring tactile position feedback and corrosion-resistant aluminum body. The HSV20FF's cross-port design minimizes pressure drop while maintaining compact dimensions. Requires no electrical connections - ideal for emergency controls or maintenance bypass operations. Features dual O-ring seals for leak-free performance in high-vibration environments.
- Production line emergency stop systems
- Hydraulic press manual override control
- Mobile equipment pneumatic circuits
- Factory training simulators
- Plastic injection molding machine maintenance
Maintenance tip:
Lubricate slide mechanism with ISO VG32 pneumatic oil annually.
Avoid side-loading the actuator lever - apply force perpendicular
to valve body during operation. Maximum cycle rate: 2 operations/second.
| Property | Property Value |
|---|---|
| sku | HSV20FF |
| Position | 3-Port 2-Position |
| Port Size | BSPT 3/4 |
