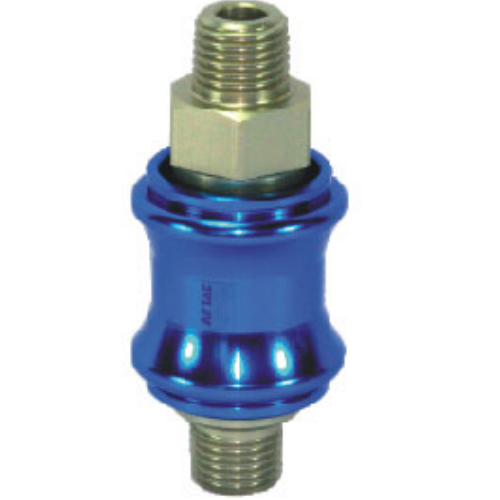

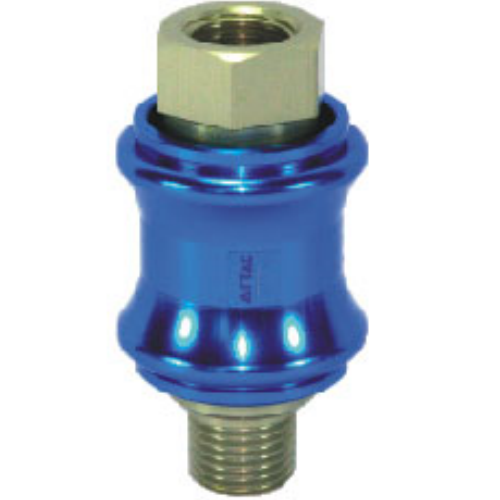

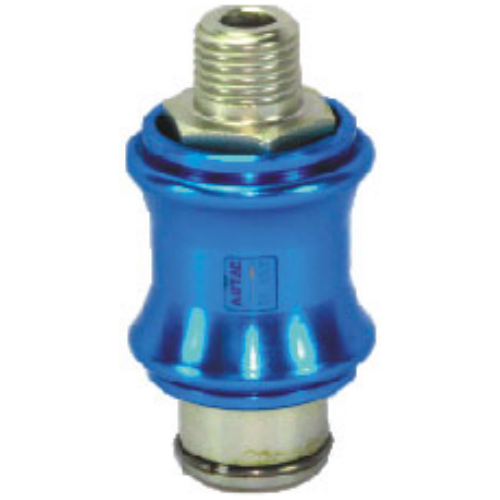

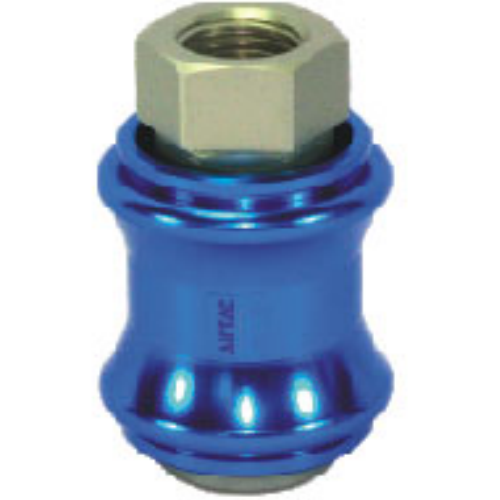

Airtac HSV Hand Slide Valve HSV20SF
2、Precision-engineered directional switching mechanism with smooth sliding operation and ergonomic tactile feedback;
3、Optimized flow path design ensuring maximum Cv value;
4、Hard-anodized spool surface and anodized aluminum alloy body provide exceptional wear resistance and permanent anti-corrosion properties.
Category: Manual Slide Valve , Brand: AIRTAC , Series: HSV
AirTAC HSV20SF Manual Slide Valve Technical Details
- Model: HSV20SF
- Type: 3-position (Closed Center) manual sliding valve
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.1–0.9 MPa (14.5–130.5 PSI)
- Actuation: Mechanical lever (90° rotation)
- Flow capacity: 650 L/min (Cv≈1.8)
- Weight: 320g ±5% (including accessories)
- Dimensions: 58mm(L) × 42mm(W) × 78mm(H)
- Body material: Anodized aluminum alloy
- Seal material: HNBR with PTFE coating
- Temperature range: -30℃ to 120℃ (dry air)
- Port thread depth: 12mm (minimum engagement)
- Leakage rate: <0.1 mL/min at 0.6 MPa
- Operating force: ≤3.5N lever torque
Industrial-grade manual override valve featuring a positive center position lock mechanism. The HSV20SF combines tactile feedback with a corrosion-resistant aluminum body, designed for precise flow control in high-vibration environments. Features dual O-ring seals and self-lubricating bushings for smooth operation across 50,000+ cycles. Compatible with ISO 8573-1:2010 Class 3 compressed air.
- Emergency bypass in automated production lines
- Pneumatic system maintenance/troubleshooting
- Manual override for robotic gripper systems
- Air circuit isolation in CNC machine tools
- Material handling equipment safety stops
Operational guidance: Apply silicone-free grease (ISO VG32 equivalent) quarterly.
The ergonomic lever features a dual-stage detent - push downward before rotating
for center position release. Avoid continuous partial engagement to prevent spool wear.
Not recommended for vacuum applications or environments with metal particulates
exceeding 5mg/m³. Requires 5-10μm filtration upstream.
| Property | Property Value |
|---|---|
| sku | HSV20SF |
| Position | 3-Port 2-Position |
| Port Size | BSPT 3/4 |
