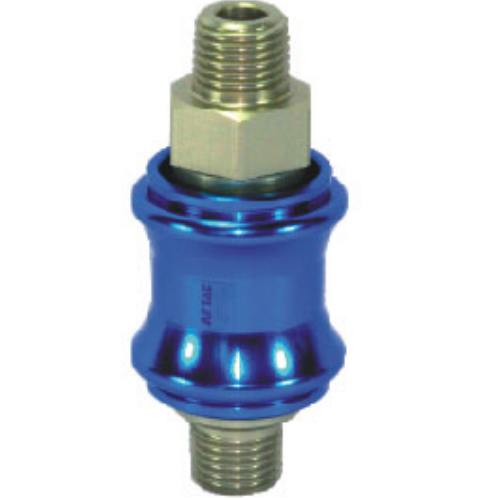

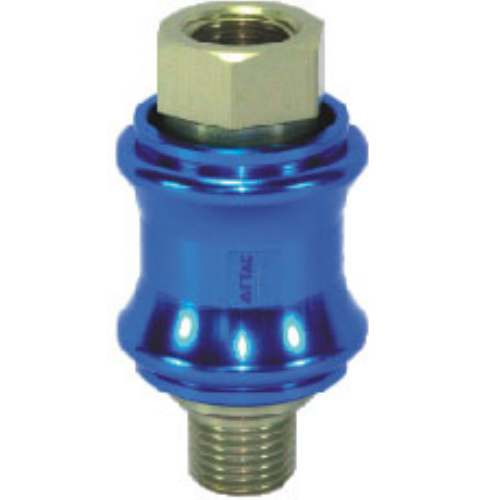

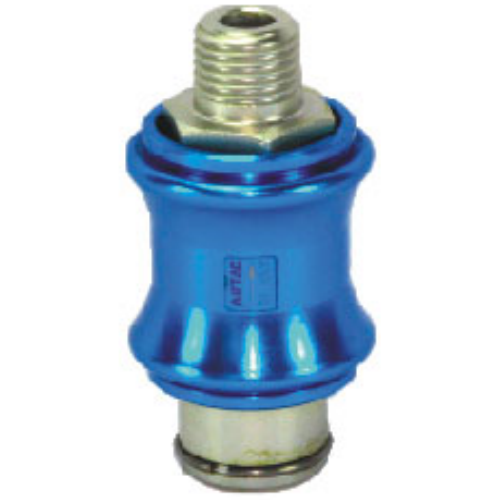

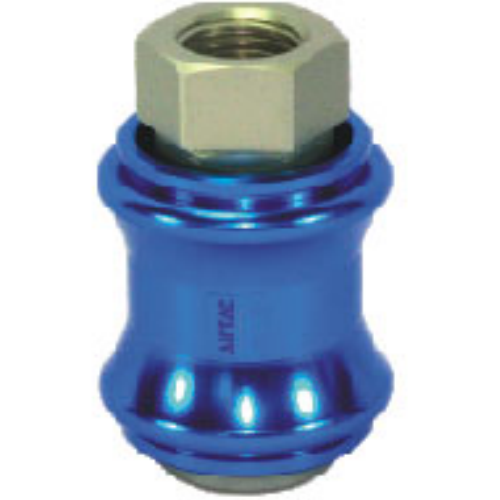

Airtac HSV Hand Slide Valve HSV20SS
2、Precision-engineered directional switching mechanism with smooth sliding operation and ergonomic tactile feedback;
3、Optimized flow path design ensuring maximum Cv value;
4、Hard-anodized spool surface and anodized aluminum alloy body provide exceptional wear resistance and permanent anti-corrosion properties.
Category: Manual Slide Valve , Brand: AIRTAC , Series: HSV
AirTAC HSV20SS Manual Slide Valve Technical Specifications
- Model: HSV20SS
- Type: 3/2-way manual slide valve (spring return)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 450 NL/min (ANR)
- Valve body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Actuation force: ≤5N (manual toggle operation)
- Weight: 480g ±5% (1.06 lbs)
- Dimensions: 64mm(L) × 34mm(W) × 92mm(H) (2.52" × 1.34" × 3.62")
- Port thread depth: 10mm (0.39") engagement minimum
- Hysteresis: ≤0.02 MPa
- Compatible fluids: Compressed air (lubricated or non-lubricated)
Robust manual override valve featuring a tactile position indicator and ergonomic lever design. The HSV20SS combines mechanical precision with manual control redundancy, ideal for systems requiring both automated and human-operated modes. Its hard-coat anodized surface resists chemical corrosion and mechanical wear. The dual-spring centering mechanism ensures positive position retention under vibration.
- Emergency override in automated production lines
- Pneumatic system maintenance bypass operations
- Prototype testing equipment requiring manual intervention
- Mobile hydraulic/pneumatic hybrid systems
- Educational training setups for fluid power systems
Installation best practices:
Mount in accessible locations with 150mm clearance for lever operation.
Use Loctite 542 thread sealant on port connections.
Perform monthly lever stroke checks under pressure to maintain seal integrity.
| Property | Property Value |
|---|---|
| sku | HSV20SS |
| Position | 3-Port 2-Position |
| Port Size | BSPT 3/4 |
